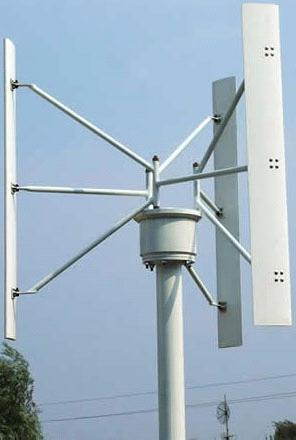

Vertical Axis Wind Turbine Generator

Supply Ability:	2,000 Set/Sets per Year
Shipping:	15days after payment
Payment Terms:	T/T(Bank Transfer)

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Place of Origin:	Shanghai in China

Specifications

Model number: ASA-300W

Parameter

Rated power 300W

Max power 450W

Output voltage 220/110

Rated wind speed 7-8m/s

Rotor diameter 1.2m

Blade material Carbon Steel Swept area 3.6m2

Cut-in wind speed 2m/s

Work wind speed 2-24m/s

Rotation speed 150r/min

Number of blades 5

Turbine weight 49kg

Tower height 8m

Tower type Steel (Q235B)

Suggested battery type 12v100AH 2pcs

Service life 20-25 years

Product Description: ASA-300 watt vertical wind turbine can supply power for lighting, TVs under 29 inches, charging various appliances, etc.

Model number: ASA-600W

Parameter

Rated power 600W

Max power 750W

Output voltage 220/110

Rated wind speed 7-8m/s

Rotor diameter 2m

Blade material Carbon steel Swept area 3.6m2

Cut-in wind speed 2m/s

Work wind speed 2-24m/s

Rotation speed 150r/min

Number of blades 5

Turbine weight 63kg

Tower height 6m

Tower type Steel (Q235B) Suggested battery type 12v100AH 2pcs Service life 20-25 years

Product Description: Our 600 watt vertical wind turbine can supply power for charging stations, water pumps (175W and under), TV, washing machines, lighting and other household appliances.

Model number: ASA-1,000W

Parameter

Rated power 1,000W

Max power 1,200W

Output voltage 220/110

Rated wind speed 7-8m/s

Rotor diameter 2.4m

Blade material FRP or Carbon Steel Swept area 4.5m2

Cut-in wind speed 2m/s

Work wind speed 2-24m/s

Rotation speed 150r/min

Number of blades 5

Turbine weight 73kg

Tower height 10m

Tower type Steel (Q235B) Suggested battery type 12v100AH 4pcs Service life 20-25 years

Product Description: Our ASA-1,000 watt vertical wind turbine can supply power for charging stations, water pumps (285W and under), TV, washing machines, electric fans, lighting and other household appliances.

Model number: ASA-2,000W

Parameter

Rated power 2,000W

Max power 2,200W

Output voltage 220/110

Rated wind speed 7-8m/s

Rotor diameter 2.4m

Blade material FRP or Carbon steel Swept area 4.5m2

Cut-in wind speed 2m/s

Work wind speed 2-24m/s

Rotation speed 150r/min

Number of blades 5

Turbine weight 78kg

Tower height 10m

Tower type Steel (Q235B)

Suggested battery type 12v150AH 4pcs

Service life 20-25 years

Product Description: Our ASA-2,000 watt vertical wind turbine can supply power for charging stations, water pumps (600W and under), TV, washing machines, computers, lighting and other household appliances.

Model number: ASA-3,000W

Parameter

Rated power 3,000W

Max power 3,200W

Output voltage 220/110

Rated wind speed 7-8m/s

Rotor diameter 3.2m

Blade material FRP or Carbon steel Swept area 8m2

Cut-in wind speed 3m/s

Work wind speed 3-24m/s

Rotation speed 160r/min

Number of blades 7

Turbine weight 98kg Tower height 10m

Tower type Steel (Q235B)

Suggested battery type 12v100AH 18pcs

Service life 20-25 years

Product Description: Our 3,000 watt vertical wind turbine can supply power for small gas stations, small toll stations, charging stations, water pumps, air conditioner, washing machines, TV, lighting, etc.

Model number: ASA-5,000W

Parameter

Rated power 5,000W

Max power 5,500W

Output voltage 220/110

Rated wind speed 7-8m/s

Rotor diameter 3.2m

Blade material FRP or Carbon Steel Swept area 10m2

Cut-in wind speed 3m/s

Work wind speed 3-24m/s

Rotation speed 160r/min

Number of blades 9

Turbine weight 102kg

Tower height 10m

Tower type Steel (Q235B)

Suggested battery type 12v150AH 18pcs

Service life 20-25 years

Product Description: Our 5,000 watt vertical wind turbine can supply power for small gas stations, small toll stations, charging stations, water pumps, air conditioners, washing machines, TV, lighting, etc.

Model number: ASA-10,000W

Parameter

Rated power 10,000W

Max power 11,000W

Output voltage 220/380v

Rated wind speed 10-11m/s

Rotor diameter 4.5m

Blade material FRP Swept area 16m2

Cut-in wind speed 3m/s

Work wind speed 3-24m/s

Rotation speed 160r/min

Number of blades 7

Tower height 12m

Tower weight 630kg

Tower type Steel (Q235B)

Suggested battery type 12v200AH 30pcs

Service life 20-25 years
