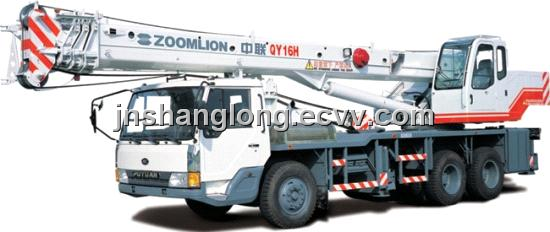

Zoomlion Truck Crane (QY20H431)

Inquiry Now

Used truck crane Tadano GT550E/ 55T GT550E Mobi...

Price:95,000.00 USD/Set

Min. Order:1 Set
Used Truck Crane Grove 150T

Price:

Min. Order:1 Piece
Truck Crane

Price:

Min. Order:

Place of Origin:	Shandong in China
Packaging Details:	Nude

Specifications

Item			Value	Remarks
Working performance specification	Max. rated total lifting capacity kg		16000
	Max. load moment of basic boom kN.m		710
	Max. load moment with max. main boom length kN.m		408
	Max. lifting height of main boom m		31.08	Deformation of boom is not taken into consideration.
	Max. lifting height of fly jib m		38.5
Working speed	Max. speed of single rope on main winch m/min		120	The 4^th layer of drum
	Max. speed of single rope onauxiliary winch m/min		90
	Derricking time of boom s		55
	Telescopic time of boom s		70
	Slewing speed r/min		0~2
Traveling specification	Max. traveling speed km/h		70
	Max. gradeability %		28
	Min. turning circle diameterm		20
	Min. ground clearance mm		250
	Limits for exhaust pollutants and smoke		Comply with related standards	GB3847-2005 GB17691-2005 (Stage III)
	Oil consumption per hundred kilometers		38 L
Mass specification	Deadweight of crane in traveling condition kg		23000
	Complete vehicle kerb mass kg		22805
	Front axle load kg		6200
	Rear axle load kg		16800
Dimension specification	Overall dimensions (L×W×H)mm		12050×2500×3400
	Base on outriggers m		4.95
	Distance between outriggers m		5.4
	Main boom length m		9.8~30.8
	Main boom angle °		-2～80
	Fly jib length m		7.5
	Offset angle of fly jib °		0 , 30
Chassis	Model		ZLJ5261
	Class		II
	Engine	Model	WP6.240
		Rated power kW/r/min	176 /2500
		Max. output torque N.m/r/min	800 /1300～1500
