Jinan Shanglong International Trade Co., Ltd.
China Manufacturer with main products: Howo Dump Truck, Tractor, Cargo Truck, Truck Crane, All Terrain Crane, Mounted Crane, Wheel Loader, Light-Duty Truck |

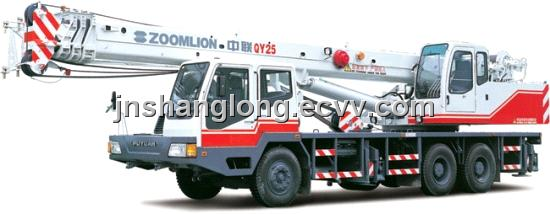

Zoomlion Truck Crane (QY25E431)
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | 40~45 |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | Nude |
Specifications
|
Item |
Value |
Remarks | ||
|
Working performance specification |
Max. rated total lifting capacity kg |
25000 |
||
|
Max. load moment of basic boom kN.m |
980 |
|||
|
Max. load moment with max. main boom length kN.m |
573 |
|||
|
Max. lifting height of basic boom m |
11.5 |
|||
|
Max. lifting height of main boom m |
33.8 |
Deformation of main boom is not taken into consideration. | ||
|
Max. lifting height of fly jib m |
41.6 | |||
|
Working speed |
Max. speed of single rope on main winch m/min |
120 |
The 4th layer of drum | |
|
Max. speed of single rope onauxiliary winch m/min |
105 |
The 2nd layer of drum | ||
|
Derricking time of boom s |
40 |
|||
|
Telescopic time of boom s |
60 |
|||
|
Slewing speed r/min |
0～2.2 |
|||
|
Traveling specification |
Max. traveling speedkm/h |
72 |
||
|
Max. gradeability % |
40 |
|||
|
Min. turning circle diameter m |
20 |
|||
|
Min. ground clearance mm |
220 |
|||
|
Limits for exhaust pollutants and smoke |
Comply with related standards |
GB3847-2005 GB17691 -2005 (Stage III) | ||
|
Oil consumption per hundred kilometers L |
46 |
|||
|
Mass specification |
Deadweight of crane in traveling condition kg |
28930 |
||
|
Complete vehicle kerb mass kg |
28800 |
|||
|
Front axle load kg |
6300 |
|||
|
Rear axle load kg |
22630 |
|||
|
Dimension specification |
Overall dimensions(L×W×H)mm |
13000×2500×3450 |
||
|
Base on outriggers m |
5.36 |
|||
|
Distance between outriggers m |
6.1 |
|||
|
Main boom length m |
10.5～33.3 |
|||
|
Main boom angle ° |
-2～80 |
|||
|
Fly jib length m |
8 |
|||
|
Offset angle of fly jib ° |
0 ， 30 |
|||
|
Chassis |
Model |
ZLJ5314 | ||
|
Class |
II | |||
|
Feature No. |
ZLJ5314D3.1 |
|||
|
Engine |
Model |
WP10.270 |
||
|
Rated power kW/r/min |
199/2200 |
|||
|
Max. output torque N.m/r/min |
1100/1200～1600 | |||
