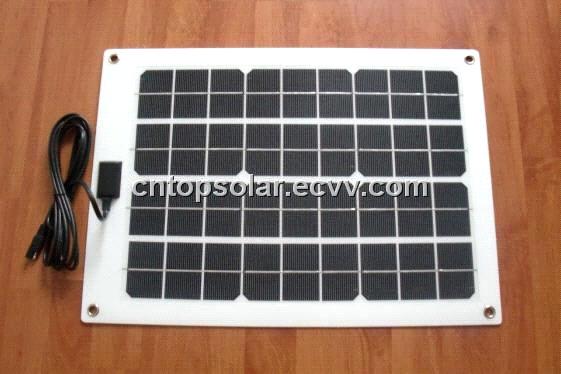

20W/18V Monocrystalline Flexional Solar PV Module
| Shipping: | 15 days or above |
|---|---|
| Payment Terms: | T/T(Bank Transfer) |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Zhejiang in China |
|---|
Specifications
Specification parameters
Peak output power: 20W;
Peak power output voltage: 17.3V;
Peak power output current: 1.17A;
Open-circuit voltage: 21.6V;
Short-circuit current: 1.62A
Size: 580*390*3.1mm
Weight: 1.29kgs
Standard output interface: 3 m of Y-connector cable or as per request;
Features
. Be with Germany made high quality silicon solar cells(over 17% efficiency);
. Be with Japan made ETFE;
. Be with anti-reverse charging protection and shadow tolerance;
. Water-proof, UV resistance and weather-proof,
. Thin and lightweight than regular glass solar panel;
. Very endurable and can step onto when panel is on flat surface;
. Can be properly bended
Warranty
2 years of workmanships and materials
Life time
Over 15 years
Application
Suitable to be used on RV car, automotives, camper, caravan, boat, yacht or other similar application that the thin and lightweight are required;
Remarks
Basing on fragile character of the crystalline silicon solar cells and also avoid any possible damage(broken) to the cells inside, we don’t suggest handle and fix this solar panel in bending way although this panel can be properly bended.
