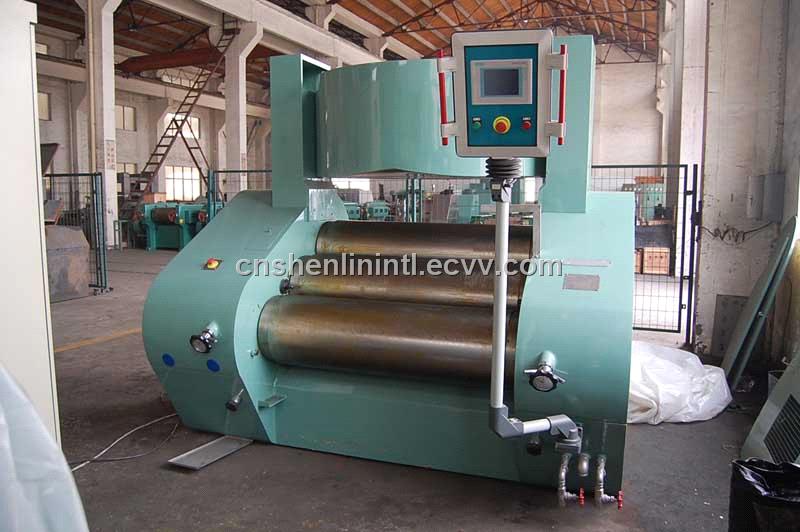

YS Series Three Roll Grinding Mill

Specifications

Introduction to this roll grinding mill
This three roll mill/grinder/mixer adopts a three rollers grinder controlled by hydraulic pressure from double-impeller pump. The basic work of machine has feeding and discharging and the size of material is controlled by hydraulic pressure. It features high automatization content. It is convenient to operate and use. Because the hydraulic system adopts a plate type structure, its arrangemen It is more reasonable. The roller is cast by special alloy, its strength is high and its surface has high hardness.

.
It has wearing resistance property. It is ideal equipment to grind high quality paste material.

.

Main technical data:

Roller diameter (mm): 400

Length of roller working surface (mm): 1,300

Roll rotating speed (rpm):

Low speed rolls (rpm): 32

Medium speed rolls (rpm): 148

High speed rolls (rpm): 400

Main motor power (kW): 55

Pressure of hydraulic system (MPa): 6.3 x 2

Pressure power (kW): 2.2

Machine weight (kg): 5,200

Overall dimensions (L x W x H) (mm): 2,634 x 1,703 x 2,295

Packing: Wooden case

EX-proof standard: not only the motor, but also the electrical line, buttons;

Frequency converyor please inform us before place your order.

 We supply three series twelve types three roll grinder for different standard requirement include the laboratorial types; Please ask for more details from us; .

Competitive price

Three Roll Mill/Grinder/Mixer, three rolls mill/grinding machines/roll grinder

three rolls mill/grinding machines/roll grinder,three roll mill,three-roller grinding mill

.

Packing

International sea freight packing by wooden box

.Warrenty

one year guarantee with 24 hours service

.
