Bigatech (HK) Co., Ltd.
China Manufacturer with main products: PCBA, Printed Circuit Board Assembly, PCB Assembly |
Protection Circuit Module
| FOB Price: | 10.00 - 20.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | 10 days |
| Payment Terms: | T/T(Bank Transfer), Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Shenzhen in China |
|---|---|
| Packaging Details: | Standard package. |
Specifications

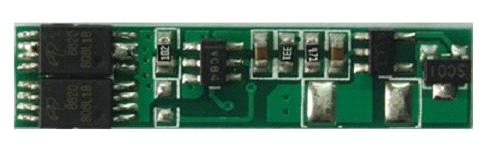

| HS465 Protection Circuit Module for 3.7V Li-ion/Li-polymer Battery Pack. | |||
| Mainly use for PDA,Digital Camera,MP3,MP4,Multimedia Player,Smart Phone,Any Portable product ext. |
| NO. | Test Item | Cirterion | |
| 1 | Voltage | Charging Voltage | 4.25V |
| Balance Voltage | 4.2±0.025V | ||
| 2 | Current | Balane Current | 100±20MA |
| Current Consumption for single cell | ≤5UA | ||
| Maximal continuous discharge current | 2.5A | ||
| 3 | Over Charge Protection | Over charge detection current | 3.60±0.025V～4.40±0.025V adjustable |
| Over charge detection delay time | 1.2±0.24S 1.0±0.3S | ||
| Over charge release voltage | 3.800～4.40±0.05V | ||
| 4 | Over discharge protection | Over charge release voltage | 1.70±0.080V～3.30±0.080V adjustable |
| Over discharge protection delay time | 144±28MS 20±6MS | ||
| Over charge release voltage | 2.000～3.40±0.1V | ||
| 5 | Over current protection | Over current dectection voltage | 0.05～0.30V |
| Over current dectection current | 7-10A | ||
| Detection delay time | 320±180US 300±200US (according to Chip) | ||
| Release condition | Cut load | ||
| 6 | Short Protection | Detection condition | exterior shor circuit |
| Detection delay time | 100-600US | ||
| Release condition | Cut load | ||
| 7 | Resistance（MOSFET） | （MOSFET） | ≤20mΩ |
| 8 | Temperature | P[erating temperature Range | -40～80℃ |
| Storage temperature range | -40～120℃ | ||
