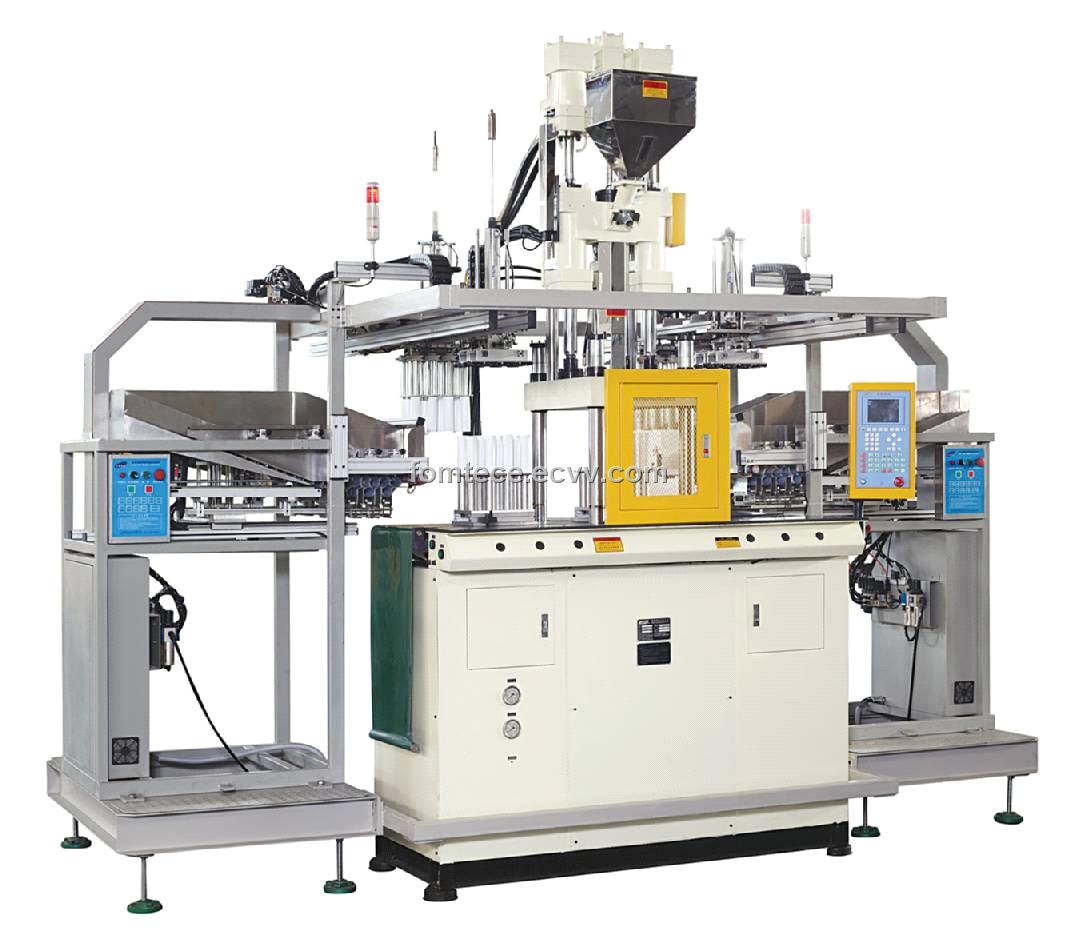

Auto Tube Injection Moulding Machine (FT-600KDS)

Specifications

AUTO TUBE INJECTON MOULDING MACHINE(FT-400KDS) IS DOUBLE SLIDING TABLE EASILY SWITCH TOW BOTTOM PARTS FOR INJECTION AND PICKING UP THE FINISHED PRODUCT AT SAME TIME. OPERATION SAFELY,COULD UPWARD THE PROCESSING EFFICIENCY 30-50%. EQUIPPED WITH AIR VALVE TO EJECTION THE PRODUCTS BY BLOWING. SPECIFICATION FT-600KDS Model Unit FT-600KDS Injection Unit Screw diameter mm φ32 φ36 φ42 Maximum injection pressure kg/cm2 2050 1620 1190 Theoretical shot volume cm3 112 142 193 Maximum shot weight (PS) g/oz 103/3.6 131/4.6 178/6.2 Injection rate cm3/sec 73 92 126 Screw speed r/min 200 Clamping Unit Clamping force ton 60 Top platen size mm 460×610 Bottom platen size mm Space between tie-bars mm 310×460 Minimum mold thickness mm 200/300 Opening stroke mm 250 Open daylight mm 450/550 Ejector force ton 2.0 Ejector stroke mm 110
