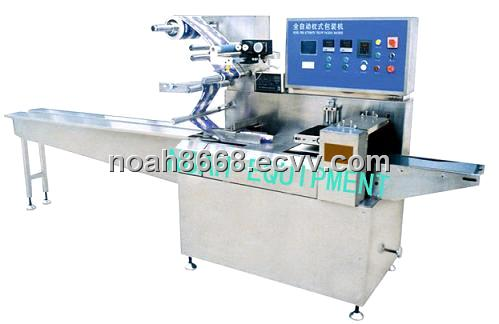

GZB High Speed Pillow Type Packaging Machine

Payment Terms:	T/T(Bank Transfer)

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	wood package or plywood package

Specifications

GZB High Speed Pillow Type Packaging Machine is a latest generation edition plate automatic packing machine designed according to the requirement of GMP by our company. Equipped with cursor to adjust the plate and sealing synchronously,automatically adjustable stroke,advanced technology,full purpose,it is an ideal equipment for medicine,dry fruit,biscuit,jerry fruit dtc foodstuff,five metals parts,carton,tray and so on.

Features:
1. As adoption of Siemens (PLC)control for the major control of the machine, precise in photoelectric detection tracking, and automatic double-way remedying, so its operation is precise and steady. The conveying chain can be adjusted without stopping. It is very convenient and fast.
2. Automatic feeder is simple and steady with wide range of regulation and powerful applicability.
3. Adjustable end close structure, to make the sealing more perfect. No-packaging cutting phenomenon.
4. It can be equipped with filling nitrogen device, install the heating dot maker, its position can be adjusted freely.
Main Technical Data:

Model	GZB-260	GZB-450	GZB-450limb
Max.packaging capacity (Time/min)	200 Decided according to the package	150 Decided according to the package	100 Decided according to the package
Max.width of paper	260	450	450
Max.out diameter of paper roll(mm)	320	320	320
Package dimension(mm)	L50-150 W25-100 H2-30	L60-220 W30-180 H5-45	L80-290 W40-180 H5-70
Power	2KW 220V	2.5KW 220V	2.5KW 220V
Overall dimensions(mm)	17508801500	17509801500	17509801500
length of the feeding belt	1750	2000/3000/4000	2000/3000/4000
Weight(kg)	650	780	780
