Cement Mixer Truck

Inquiry Now

Specifications

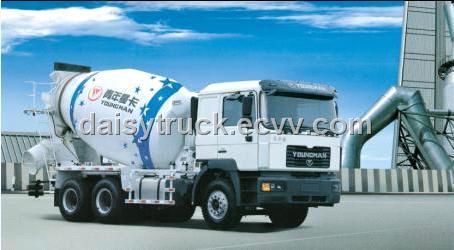

GW5250GJB Cement Mixer Truck (Hino Power III)
Model				GW5250GJB
Driveline				6×4
wheelbase			mm	3600+1400
Overall dimension	Length		mm	8890
	Width		mm	2490
	Height		mm	3875
Track	FR/RR		mm	2006/1864
Overhang	FR/RR		mm	1525/2415
Kerb weight			kg	14300
GVW			kg	25000
FR/RR axle loading ability	FR/RR		kg	7000/18000 double axle in parallel
Max speed			Km/h	86
Min turing diameter			m	18.7
Engine
Model				P11C-UL
Type				in-line,6 cylinders, turbo-cooling
Displacement		L		10.52
Emission				Euro Ⅲ
Max output		kw/rpm		259/2100
Max torque		N.m/rpm		1460/1100
Chassis
Clutch				SACHS MFZ430
Transmission				FST 9JS150T-B(1500Nm)
Front axle				Front axle (7.5t)
Middle axle				Tandem drive axle(13t)
Rear axle				Tandem drive axle(13t)
Front suspension				Multi-leaf spring
Rear suspension				Multi-leaf spring
Steering system				ZF8098
Braking system				rear drum brake with ABS, double circuit pneumatic pressure, with shoe-wearing sensor, KNORR,WABCO brake valve
Oil tank				400L aluminum alloy
Tire				12.00-20
Mixing drum
Length		mm		4605
Diameter		mm		2305
Gradient		°		13.5
Geometric volume		M3		15.18
Working volume		M3		9
Working rotated speed		R/min		0~18
Feeding speed		M3/min		≥3
Discharging speed		M3/min		≥1
Remained rate		%		<0.1
Driving system
Hydraulic pump				DV23
Motor				MK23
Gear case				TMG61.2,P4300
Water supply system
Volume(L)				300
Means of water				pneumatic pressure
VULCAN blacksmith by mixing technology, Tanks imported high-quality materials, Unique three-dimensional mixing technology, the residual material from virtually zero rate, it is the true sense of professional engineering mixers, and the most appropriate to meet long-range, long time, as well as the requirements of high-strength concrete transport needs.

The words and diagram is not binding each other. We keep the right of changing the interior

program along with the approved technology.

All the above specification & data is for reference only. For more information, please kindly contact us.
