Toyota TIS Scanner

Specifications

ALLSCANNER is the latest automotive diagnostic tool. It was designed by the new international standard,
it can identify different vehicles intelligently, and it can support all vehicles in the market. It adopt
wireless communication module of WIFI 802.11b/g, it can be used with Laptop or PDA. The diagnostic software
can be operated under the platform of Windows and WinCE.

Product's appearance as below:

Handheld Terminal
PDA or Handheld touch screen display, WinCE platform.

Laptop
Wireless Laptop, Windows platform.

VCX

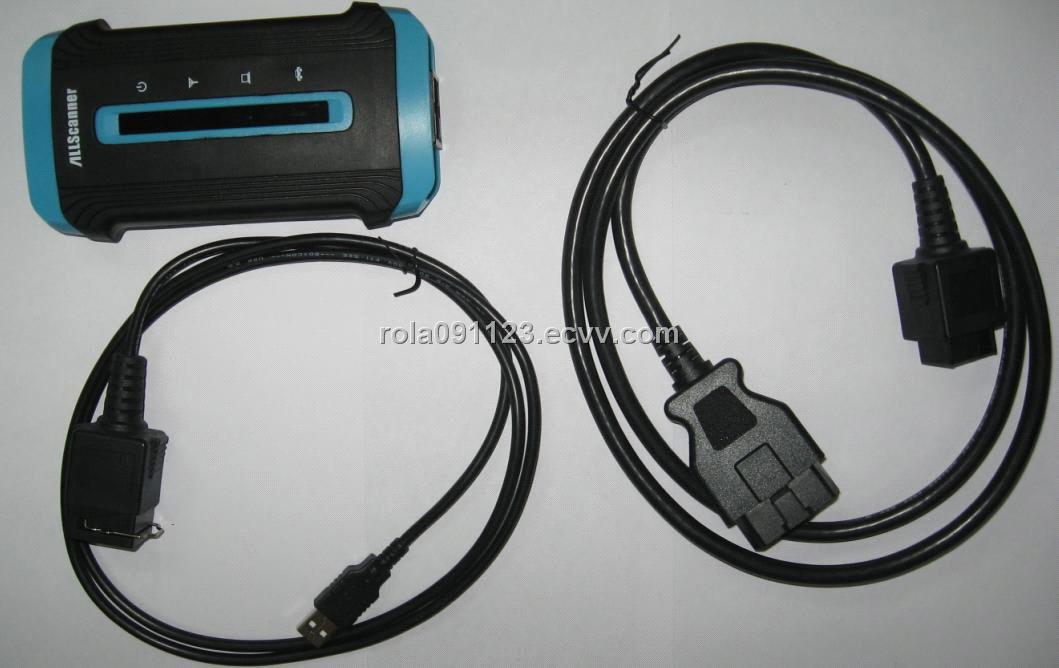

Diagnostic box, the communicate bridge between mainunit and vehicles.

Connector
Connect to vehicle diagnostic socket.

Wire connect
RS232 serial port,115200bps

Wireless connect
WIFI 802.11b/g,Connect to WIFI network.

Hardware Specification
ITEM State
CPU 16 digit Dual Cell specialize CPU
RAM 64KB RAM
FLASH 256KB FALSH
Diagnostic Port 24PIN, self-determination design
Wireless Port 802.11b/g WIFI wireless
LED 4 LED indicator light,indicate power and status.
Power DC 9V-28V
Consumption 3W
Size 156(L)x86(W)x35(H)mm
Working Temperature -20???+70 °C
StorageTemperature -40???+85 °C

Product Feature
1.Adopt 16 digit Dual Cell specialize CPU, Full compliant with all vehicles
protocols.
2.Use standard 802.11b/g WIFI wireless,connect easy to network, or
connect to Laptop to realize wireless diagnosis.
3.Diagnostic software accord with international standard, collocate
communication port flexibly, less connectors support almost all vehicles
socket.
4.Self-determination design for connectors and cables.
5.Compliant with 12V and 24V communication, Support heavy duty vehicles.
6.Hardware accord with CE and FCC standard.

Vedix the latest diagnostic software platform of ALLScanner, be used with hardware ,the characters be shown as below:
Diagnostic software can be operated under WinCE and Windows,
available installation for Laptop or PDA.
Automotive Diagnostic language (VDL) exploitation platform based on
XML by self-determination and high efficiency database management
system, these will make it easily to explore the vehicles.
Continuously update for diagnostic software.
