Product Details

Place of Origin:	Hunan in China
Packaging Details:	Carton

Specifications

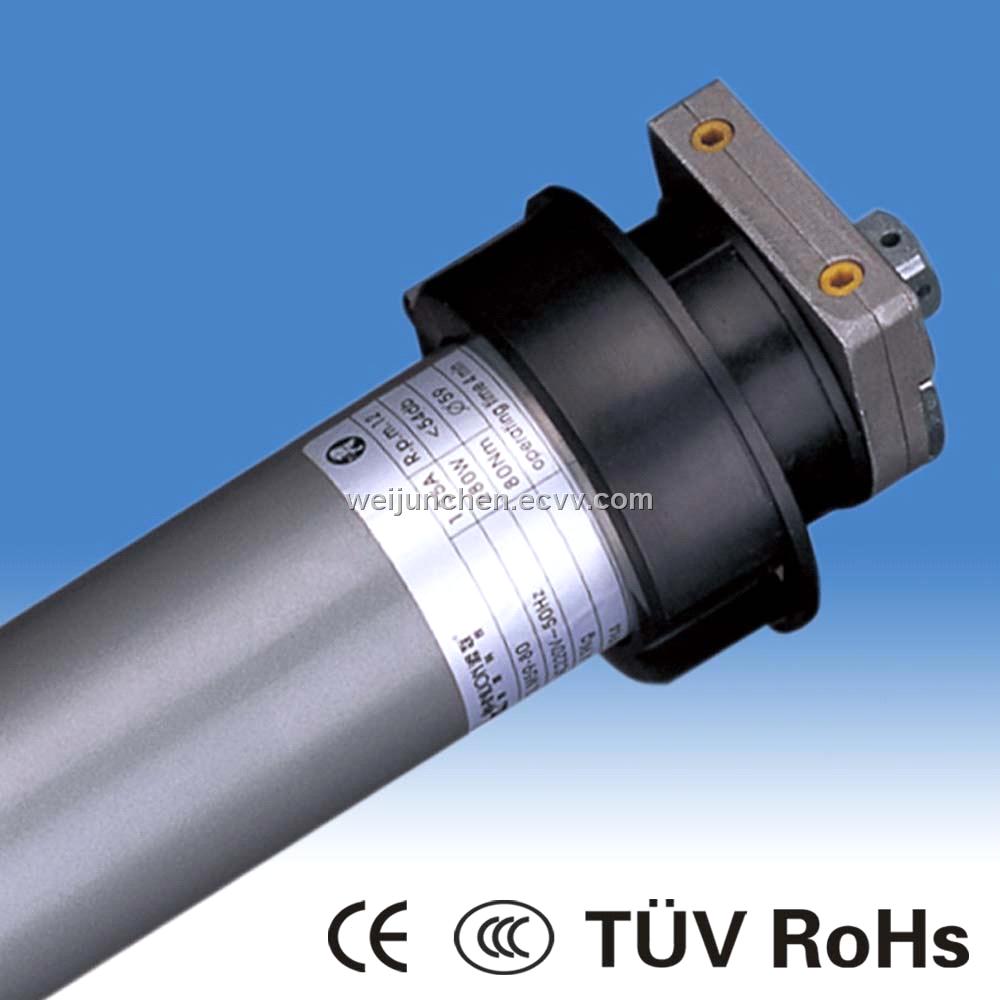

Tubular Motor /Roller Shutter Door Operators

Standard Type Tubular Motor

SLM59A

Tubular motor is adopted international advanced technology for development and manufacture, operation safe, concise design and convenient installation. Tubular Motor is applied to doors and shutters of commerce, factory, automobile repairing store and mending room.

Tubular motor / Roller door motor SLM59 Advantages:

Non - malfunction for the brake

Double sided magnetism, cone magnetism, electromagnetism brake system is used in this new type motor in order to meet different customers'requirement. It takes our team many years' research and test for the material of brake system which makes it perfect.

Adopted the plastic sealed technology, all the components have the accurate location dimension, low coefficient of the variation, and the service life time can be amounted to 10 years. Advanced design and crafts, the highest torque

Strong intensity Adopted the special material, the gear is more wear-resisting, toughness and steel feature is more stronger which will increase the service life of the gear box.

Oil proof The sealed structure helped the gear oil hard to leak, ensure the gear works normally longer.

Accurate limit The accuracy for limit is <+-0.5 degree tolerance, limit configuration by screw pole drive makes accuracy for limit <+- 1.5 degree

Large effective limit Reasonable and compact design increases effective distance for limit very much, and the effectiveness could reach 50 circles.

Build-in remote control Good quality and stable receiver built in motor not only shorten the installation time, Effective distance for remote control system is more than 30m.

Model SLM59A	60	80	100	120
Voltage	230/110	230/110	230/110	230/110
Power	315/360	370/383	458/480	480/495
Nominal speed (rpm)	12/14	12/14	12/14	12/14
Nominal torque	60Nm	80Nm	100Nm	120Nm
Work time	4min	4min	4min	4min
Insulation level	B	B	B	B
Protection	IP44	IP44	IP44	IP44
Tube Diameter	59mm	59mm	59mm	59mm
Overall size (mm)	614	614	614	614
