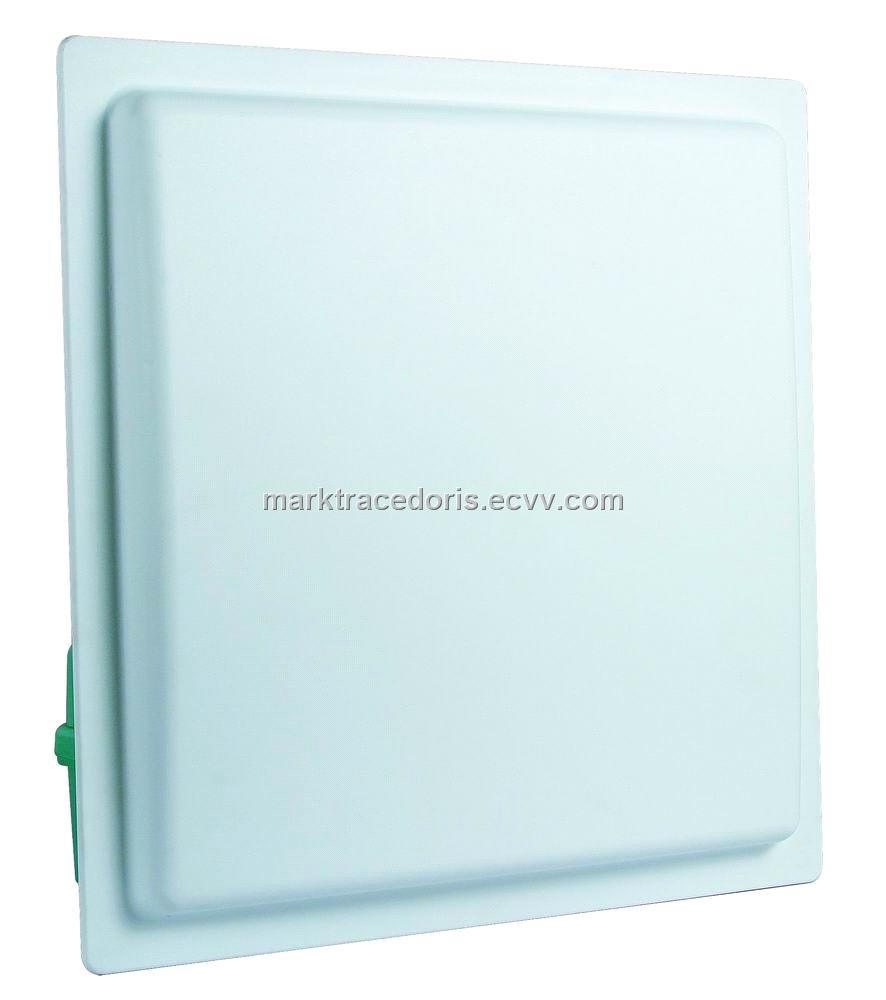

RFID UHF Reader(MR6011A)

FOB Price:	1.00 - 100.00 USD/SZ
Shipping:	1-3days
Payment Terms:	T/T(Bank Transfer), Western Union

In Stock

Inquiry Now

Related products from verified members

Low Cost 125khz RF Module

Price:

Min. Order:

Product Details

Place of Origin:	Shenzhen in China

Specifications

Brief Introduction MR6011A

The products can be compatible with multi-protocol,integrated design ,quickly read, multi-tag read,proof-water, can be used widely in RFID systems,the mainly applying site is:

1 Logistics and warehouse Management:Goods flow,warehouse management,and the flowing management of mail,parcel,luggage.

2 Intelligent parking Management :Parking management and automatic charge

3 Productive lines Management: Production process fixed identication

4 Product counterfeit-proof inspection:Using memory’s write-protect functions inside tags,and identifying with true-false of products

5 Other fields:Used widely in club management,library,student’school,consumption management,time management,dinner management,pool management

Capability specifications

Scanner Model	MR6011A
Protocol	ISO18000-6B，ISO18000-6C（EPC GEN2）
Frequency Range	ISM　902~928MHZ (FCC) or ISM 865～868MHz option (other frequency depend on customer request)
Operation Mode	Fixed Frequency or FHSS Software Programmable
RF Power Output	0~30dBm
Reading Rate	Software Programmable，Average Reading per 64Bits：<10ms
Reading Mode	Auto And Touch or Software Programmable
Communication Ports	ü RS232 ü RS485 (Syris485) ü Wiegand26/34 ü RJ45 Software Programmable
Data Input	Input One Team
Reading Range	>12 m
Reading Clue	Buzzer
Antenna	Built-in Antenna，Gain:12dbi
Power Consumed	DC +9v AC–DC Adapter, less than 3 Amps
Dimension	440mm×440mm×50mm
Avoirdupois	2 Kg
Operation Temp	－20℃~＋80℃
