Construction Machinery (PF Series)

FOB Price:	555.00 - 88888.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	10-30 days on receipt of payment in advance.
Payment Terms:	L/C, T/T(Bank Transfer), D/P

In Stock

Inquiry Now

Product Details

Place of Origin:	Shandong in China
Packaging Details:	Export Standard Package or upon the customer's request

Specifications

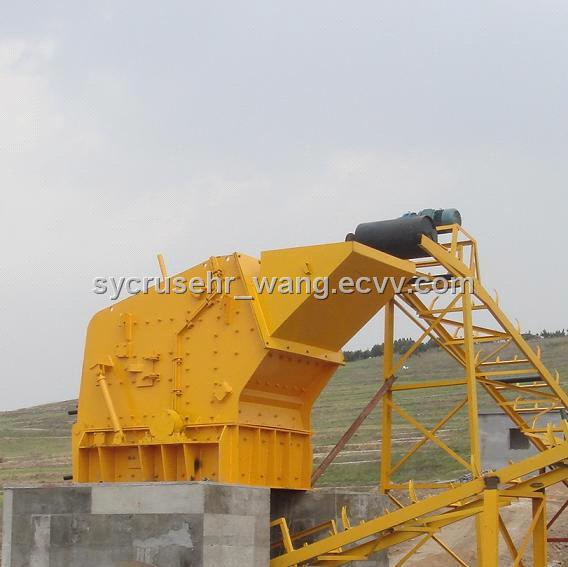

PF Impact Crusher,Crusher Plant,Construction Machinery,Construction Equipment

Operation Principle of Construction Machinery of Construction Machinery:

This impact crusher machine is a crushing equipment used for breaking materials by a crushing. The device takes the rotor to do high-speed rotatory movement under the lead of the motor; when the materials entered the functional section of plate hammer, they experiment plate hammer's high-speed crushing and are throwed constantly to the reaction device installed on the rotor , then spring back to the functional section of plate hammer from the back board, and then are crushed again; the materials from big to small in the shredding breach to be broken repeatedly. Until the materials are broken to the demanded grain size, discharged from the bottom of the machine.

Performance Features of Construction Machinery of Impact Crusher:

It is the latest reaction breaker, this machine combines breaking and shaping together; it has the features of being high efficiency, low-consumption, good discharge grain shape. Compared with other reaction breaker, it can reduce the energy consumption by 40%; the quantity of the aggregate needle flake can be reduced by more than 80%.

Applicability of Construction Machinery of Impact Crusher:

Widely applied to all kinds of materials crushing, processing and shaping, such as basalt, granite, cobble stone, limestone, etc.

Specifications of Construction Machinery of Impact Crusher:

Model	Max. Feed Size (mm)	Discharge Size (mm)	Capacity (t/h)	Motor power (KW)
PF-1010	≤100	<40	50-90	75
PF-1210	≤120	<40	60-130	110
PF-1214	≤140	<40	70-180	132
PF-1315	≤160	<40	90-250	200
PF-1320	≤180	<40	120-350	315
