Hebei Jiaoyang Wire Mesh Machine Co.,Ltd
China Manufacturer with main products: Mesh Wire, Mesh Wleidng Machine, Welder Machine, Steel Mesh Welding Machine |

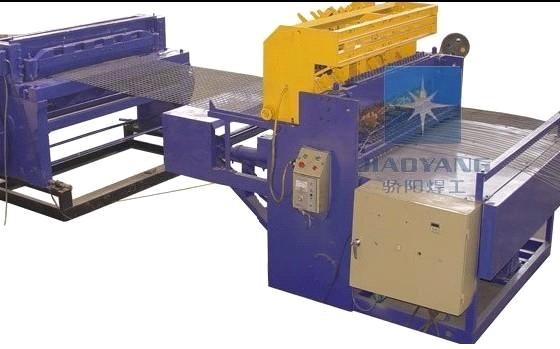

Industrial Mesh Welding Mchine JY2-1
| Shipping: | 30 |
|---|---|
| Payment Terms: | L/C, T/T(Bank Transfer) |
| Place of Origin: | Hebei in China |
|---|---|
| Packaging Details: | wooden case |
Specifications
Function features: motor drive
This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding . Welding by electromotor ; the hopper adopts the steeping motor; brake motor wheels ;pulling the wire net is controlled by the steeping motor . The line wire and the weft wire are pre-straight and pre-cut . The greatest advantage is you can adjust the distance of weft wire at random on the same one piece wire mesh sheet.
|
Wire diameter |
3.0-6.0mm |
Line wire form |
precut wire |
|
Weft wire distance |
25-200mm |
Weft wire form |
precut wire |
|
Line wire distance |
50-300mm |
Rated voltage |
380V |
|
Welding net width |
2500mm |
Rated power |
100KVA×8 |
|
Welding speed |
30times/min |
Overall dimension |
3100×7900×1900mm |
|
Welding No. |
51 |
Length wire net |
6000mm |
Application:
Fence mesh (highway ,railway, hills) , building roof wire net .
mesh wleding machine from this supplier
FOB Price: 3564.90-20601.40 USD/Piece
Min Order: 1 Piece
FOB Price: 25600.00-71600.00 USD/Other
Min Order: 1 Other
