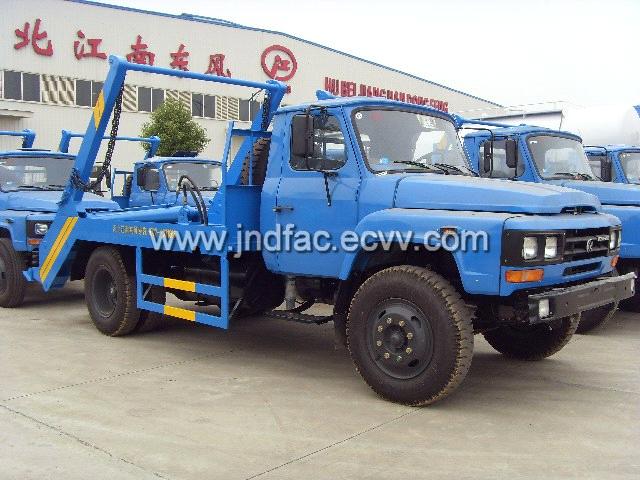

Dongfeng Conventional Cab Swing Arm Type Garbage Truck

Supply Ability:	9,000 Set/Sets per Year
Shipping:	10 days
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Product Details

Place of Origin:	Hubei in China

Specifications

------- Engine

Model YC4E140-20

Power (kW)： 105

Displacement (ml)： 4257　

Type： in-line four cylinder water cooler diesel engine

------ Chassis

Outline dimensions (mm):7180*2470*3300

Wheelbase (mm):3950

Cab: conventional cab and single row seats type 　

------ Special Function

Capacity (m3)：6.5-8

Hydraulic system working pressure：16Mpa

Lifting arm radius (mm)：2400

Hydraulic system capacity：50L/min

Lifting angle ：124°

Lifting time (s)：30

Discharge time (s)：50

DONGFENG conventional cab swing arm type garbage truck reffited from EQ1092F19DJ chassis,The vehicle is artistic, the clean environmental protection, trash compartment volume is big, is the municipal administration environmental sanitation department, the large-scale industry and mining enterprise carries on the ideal which trash cleans up and takes away to use the vehicle.

Our company Production street sprinkler.Tank truck. Garbage truck. Sewage Dredging Truck.High pressure washer truck.Chemical liquid truck.Powder material truck (bulk cement truck ).Crane with automobile.Hydraulic aerial cage.Street wrecker.Fire truck.Refrigerated van.Kept temperature van.Van truck.Sweep street truck.Concrete mix truck.Electric mobile machinery automobile.Dump truck.Semi-trailer truck and so on .
