Qingdao Judong Industry Co., Ltd.
China Manufacturer with main products: Plate Vulcanizer Machine, Hot/Cold Feed Rubber Extruder, Bale Cutter, Rubber Extruder, Artifical Grass, Hydraulic Press for Tyre |

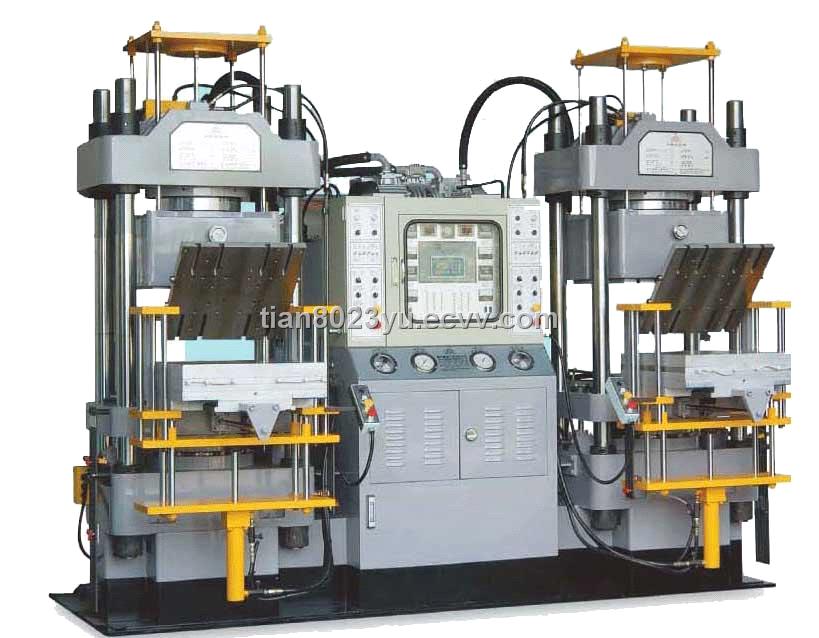

Vacuum Press Machine
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | 30DAYS |
| Payment Terms: | L/C, T/T(Bank Transfer) |
| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | WOODEN CASE |
Specifications
| Suits produces each kind of O circle, the rubber keyboard, the medical |
| service with the rubber components, rubber components and so on rubber |
| components, the most economical tradition, the operation is simple, takes |
| shape fast, may choose for three molds leaving. |
| Characteristics: |
| The machine structure after the computer pressure, the strain analysis, |
| the service life is long-time; |
| The special heating platen design, the temperature distribution is even, |
| guarantees takes shape the quality disposable; |
| The fluctuation track organization, guarantees the sliding panel and the |
| heating platen does not rub; |
| The high efficiency fast vacuum system, the end product lack materials, the |
| gas-free does not soak. |
| Hydraulic system： |
| The hydraulic pressure unit and an organism body, the design are artistic, |
| not oil leak, also may choose the proportion type 。 |
| Electrical system ： |
| PLC matches touches the screen control, enhances the product |
| Specification | Parameters | Specification | Parameters | Specification | Parameters |
| Mold-locking force | 200 TON | Opens the files most greatly | 300mm | Mold use thickness | 50~150mm |
| Max.working pressure | 210 kg/cm2 | Motor power | 18.3kwx2 | Main engine horsepower | 15HPX6P(11.2KW) |
| Main engine piston diameter | 360mm | Thermo plate dimension | 505×510mm | Vacuum horsepower | VC-75(1.85KW/50Hz) |
| Max.stroke | 250mm | Mold frame plate size | 500×500mm | Fuel tank volume | 700L |
