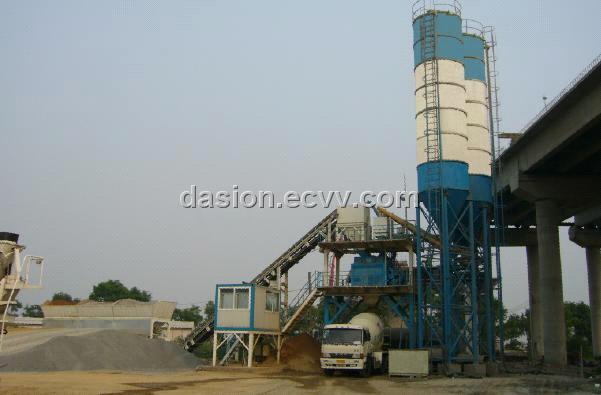

Ready Mix Concrete Plant (HZS75)

Specifications

DASION Concrete Mixing Plants adopt new-design of electrical weighing system, that includes computer control, digital display, etc. This kind of system also is equipped buffered device and auto-add function when weighing deflection, that will make sure the measurement accurate and timely. Aggregate feeding system adopt Skip Hopper, is equipped ladder for worker maintenance or service. They are the best choice for high quality concrete production or huge construction project. Model: HZS75 Capacity: 75m3/h Concrete Mixer: JS1500 Mixing Motor Power: 2×30kw Mixing Cycle: 65s Discharging Volume: 1500L Discharging Height: 3.8m Max. Aggregate Size: Φ80mm Aggregate Sorts: 4 Max. Capacity of Screw Conveyor: 90t/h Total Power of Plant: 139kw Aggregate Weighing Range & Precision: 0~1000 & ±2%kg Cement Weighing Range & Precision: 0~500 & ±1%kg Water Weighing Range & Precision: 0~300 & ±1%kg Additive Weighing Range & Precision: 0~30 & ±1%kg Control Method: Computer Automatic Control
