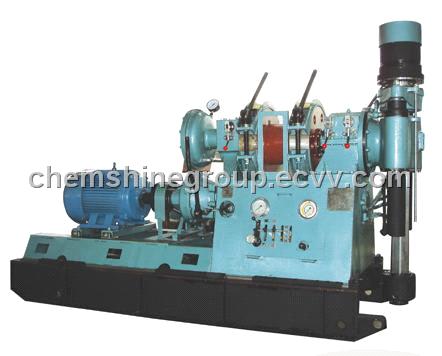

CXY-44 Core Drill Rig

Supply Ability:	1,000 Set/Sets per Year
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Specifications

In order to meet the current requirement of more deep geological exploration, basing on the models of CXY-4 and CXY-42, the CXY-44 rig,a reformed model,has been designed and produced by Chemshine . The CXY-44 is in larger drilling capacity. It could be used for engineering geological exploration, hydrological well drilling and construction of foundation projects in large diameter as well, besides applicable to core drilling by mainly using diamond bit or tungsten-carbide tipped bit. The rig is reasonable in structure, light in weight, great in capacity, wide in versatility, stable in property and high in reliability. It is also in a high greed of standardization and generalization.

CXY-44 Drilling Machine Parameter

Drilling Depth	750 - 1400 m
Drilling Angle	0-360°
Max. Torque	3.2 kN.m
Spindle Stroke	600 mm
I.D. of Spindle	93 mm
Max. Lifting Capacity of Spindle	120 kN
Max. Pressure of Spindle	90 kN
Max. Hoisting Capacity	45 kN
Power of Engine	37 kW
Dimensions(L×W×H)	2730×1100×1860 mm
Weight(without power unit)	2150kg
