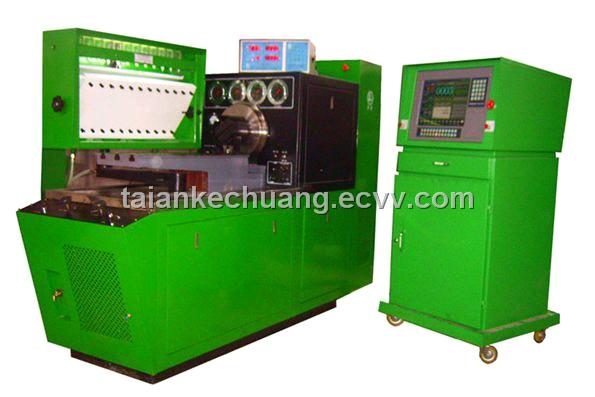

Diesel Fuel Injection Pump Test Bench Fission Type (EPT-EMC)

Specifications

Characteristics (1)Changing frequency changing rotation speed. (2)Small fall of rotation speed and large output torque. (3)High measurement precision. (4)The functions of overvoltage, overload and short circuit protection. (5)Ten kinds of rotation speeds presetting. (6)Constant temperature controlled. (7)Ultra low noise. (8)Operating position : arbitrary side of the two work sides of the test stand. (9)Advance angle, rotation speed ,count temperature and air pressure are displayed on 15”CRT or LCD;(May selection) (10)Built-in air resource. Functions (1)Measurement of each cylinder’s delivery at various rotation speeds; (2)Checking of each cylinder’s injection time with static state; (3)Checking of the mechanical speed governors; (4)Checking of the electromagnetic valve of distributor pumps; (5)Checking performance of the pneumatic governors; (6) Checking of the pressure compensators (LDA) ; (7)Measurement of the reflux delivery of distributor pumps; (8)Measurement of the internal pressure of the distributor pumps body; (9)Checking of the pneumatic speed governors, vacuum performance; (10)Measurement of rack travel; ( May selection) (11)Measurement of advance angle; Technical Parameters (1)Adjustable rotation speed range:0~4000r/m; (2)Double Series graduates:45cc,150cc; (3)Volume of oil tank:60L; (4)Temperature stabilization:40±20C: (5)Test oil filtering unit:5μ； (6)D.C.Supply：12v/24v； (7)Feed pressure: low:0~0.4Mpa.high:0~4Mpa; (8)Air pressure:0~0.3Mpa; (9) 3-phase power supply: 380v/50Hz or on request; (10) Flywheel inertia’s moment: 0.8 Kg.M2; (11)Center height: 125 mm; (12)Output power: 11KW ,15KW,18.5KW or on request; (13) Overall dimensions(mm): 2200×960×1880； (14) Net weight (KG):1300.
