Stacker

Specifications

Stacker  :

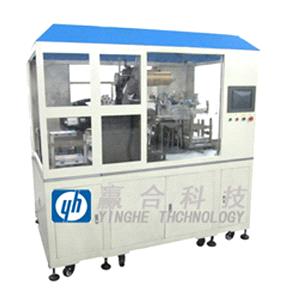

YHZS-260160-A-type Fully Automatic Lamination Stacking Machine for lithium-ion battery

1, Model and name

   YHZS-260160-A-type Fully Automatic Lamination Stacking Machine for lithium-ion battery

2, Function description of equipment

   This machine is mainly used for the lamination stacking of prismatic lithium-ion power battery. Work process is as follows: Separator active unwinding, passing through rolling and tension agencies, lead into stacking flat. The stacking flat drives separator goes and back moving in order to place the electrode.Sucker, respectively, removes anode and cathode electrode from the left and right material box, after accurate positioning stacked on the stacking flat. Lamination stacking is completed, automatically ending, automatically affixing terminated tape. Finished auto-blanking, sent through the conveyor belt to achieve automatic lamination stacking process.
