Digital Portable Ultrasound Scanner

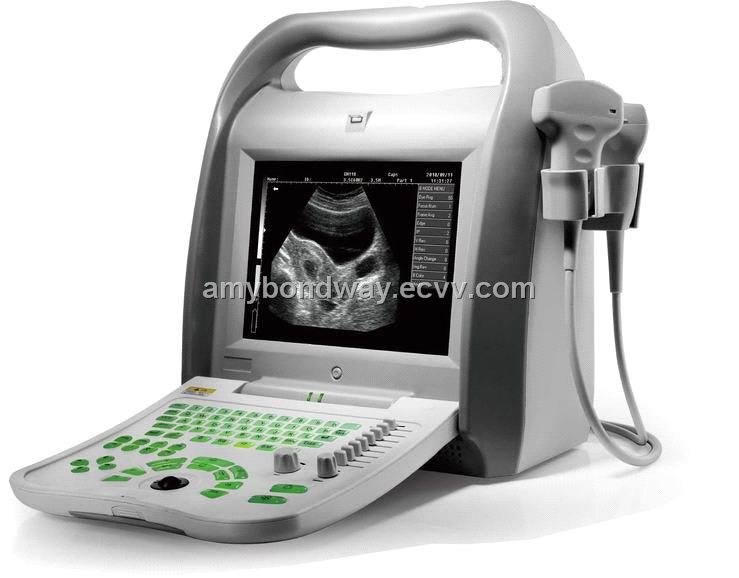

Digital Portable Ultrasound Scanner (BW550)

Features
Technical Specs
1. Probe: Electronic convex array, linear array, transvaginal and microconvex probe.
2. Gray Scale: 256
3. LCD Display: 10.4" crystal
4. Power Supply: 110-230V 50-60Hz
5. Main Unit Size: Approx. 290*245*50mm(L*W*H)
6. Main Unit Weight: Approx. 8.5kg (exclusive accessories)

Primary Function
1. Display Mode: B, B/B, 4B, B/M, M
2. M scanning speed: 1s, 2s, 3s, 4s, 5s, 6s, 7s, 8s
3. Zoom: × 0.8, × 1.0, × 1.2, × 1.5, × 1.6, × 2.0, × 2.4, × 3.0
4. Depth Enhancement/ Pan Function
5. Local Zooming
6. Adjustment and display of near field, far field, total gain and dynamic range
7. Single-point, multi-point focusing
8. Frequency conversion
9. Angle Change
10. Frame Correlation
11. Gamma Correction, edge enhancement for image post-processing
12. Image Freeze/unfreeze
13. Vertical, horizontal flip and Black/white conversion
14. Psuedo Color Display
15. Patient information, image annotation and auto time display
16. Body Marks: 64
17. Measurement of distance, circumstance, area, volume, slope, heart rate, and cycle
18. Obstetric Package including 10 tables, automatic calculation of EDD and Fetus Weight
19. Puncture Guide
20. Engery Saving
21. 100 frames image storage
22. 256 frames cine loop
23. OB report, fetus growth curve, cardio report, Gyn report, Urological report
24. PAL-NTSC Conversion
25. 2 USB ports
26. Backlight silican keyboard and Optical Trackball
