Briquette machinery

FOB Price:	1.00 - 10000.00 USD/Set
Supply Ability:	900 Set/Sets per Year
Shipping:	within 15 days after the deposit
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Related products from verified members

Wire Nail Making Machine

Price:

Min. Order:
Fully Automatic Chain Link Mesh Machine

Price:

Min. Order:
soft pipe canned sealing tail machine (MGFJ-60)

Price:

Min. Order:
PVC Coated Machine for Stainless Steel Corrugat...

Price:1.00-12.00 USD/Set

Min. Order:1 Set
Riveting Machine

Price:5000.00-100000.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Henan in China
Packaging Details:	good condition

Specifications

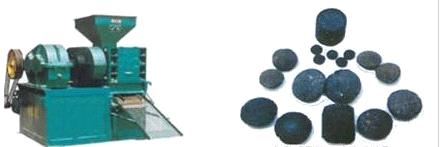

Briquette machine is mainly used to mould coal briquette, cold pressed ball of scrap metal powder in metallurgy. All powder materials going to be ball pressed needs an instrument of ball press machine, such as: coal dust,coke powder, ferrous and non-ferrous metal powder, ferric oxide sheet,dust,mud and refractories.

It is mainly used in areas of coal dust,coal slurry, middlings,coke powder,coking coal or scrap powder in metallurgy,and refractories. Ball press machine is always needed when powdery materials need smelting.

Performance Model	ZYXM-360	ZYXM-430		ZYXM-520		ZYXM-670		ZYXM-750		ZYXM-800		ZYXM-1000		Remarks
Throughtput (t/h)	3-5	5-8		6-10		10-15		15-18		18-20		20-25
Roller wideth(mm)	250	280		300		336		400		500		650
Roller diameter (mm)	360	430		520		670		750		800		1000
Motor(kw)	7.5	11-15		15-18.5		22		45		55		75		According to the material
Shaft speed (rounds/min)	12	12		13		13		13		10		10
Decelerator	ZQ350	ZQ400		ZQ500		ZQ650		ZQ750		ZQ800		ZQ1000
	ZQ400	ZQ500		ZQ650		ZQ750
Pressure form	4-rollers													Choose one of them
	Block rod axis				hydraulic
Roller material	65Mn													founding
	Alloy steel													Die casting
Structure form	2-rollers single pressure													Choose one of them
	4-rollers double pfessure
Shaft bearing	319*4				2097724*4
Shaft diameter(mm)	95		110		135		165		165		180		225
Shape and size	45# steel		45# steel		Forge piece									Heat treatment
	As per yourself													Usually using 30-60mm
