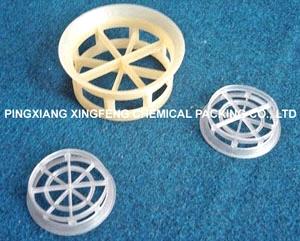

Plastic Cascade Mini Ring

Supply Ability:	8,000 Cubic Meter per Year
Shipping:	Within one week.
Payment Terms:	L/C, T/T(Bank Transfer), D/A, D/P, Western Union, PayPal

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Jiangxi in China
Packaging Details:	By plastic bag + jumbo bag.

Specifications

Plastic Cascade Mini Ring

Plastic Cascade Mini Ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60 Degree C to 150 Degree C. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc..

Physical & Chemical properties of plastic tower packing

Performance / Material	PE	PP	RPP	PVC	CPVC	PVDF
Density (kg/m³)	0.94-0.96	0.89-0.91	0.93-0.94	1.32-1.44	1.50-1.54	1.75-1.78
Operation Temp.(Degree C)	90	>100	>120	>60	>90	>150
Chemical corrosion resistance	Good	Good	Good	Good	Good	Good
Compression Strength(Mpa)	>6.0	>6.5	>7.0	>6.0	>8.0	>10.0

Technical Data for Plastic Cascade Mini Ring

Spec.	DHT (mm)	Number per m³	Bulk density (kg/m³)	Surface area (m²/m³)	Free volume (%)	F Factor m-1)
Dg16	168.91.1	299136	135.6	370	85	602.6
Dg25	2512.51.4	81500	97.8	228	90	312.8
Dg38	38191	27200	57.5	132.5	91	175.8
Dg50	50251.5	10740	54.8	114.2	92.7	143.1
Dg76	76373	3420	68.4	90	92.9	112.3
