Specifications

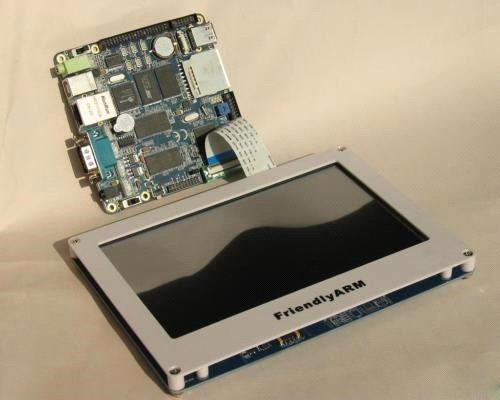

Samsung S3C2440 ARM9 Board + 7" TFT LCD Touch Screen
Features
CPU
-Samsung S3C2440A 400MHz, Max freq. 533Mhz
SDRAM
-64MB SDRAM
-32bits Data Bus width
-100MHz Clock
Flash
-1GB Nand Flash
-2MB Nor Flash, BIOS installed
LCD
-4 wire resistive touch screen interface
-Up to 4096 color STN, 3.5 inches to12.1 inches, up to 1024x768 pixels
-Up to 64K color TFT, 3.5 inches to 12.1 inches, up to1024x768 pixels
-In box 256K color 800x480/7.0 inches TFT LCD screen, with touch screen
Interface and Resource
1 x 10/100M Ethernet RJ-45(DM9000)
3 x Serial Ports(1 RS232 with CTS and RTS)
1 x USB Host
1 x USB Slave Type B
1 x SD Card Interface
1 x Stereo audio out, 1 Micro In
1 x 10-Pin JTAG
4 x USER LEDs
6 x USER buttons
1 x PWM Beeper
1 x POT can be used for A/D converter adjust
1 x AT24C08 for I2C test
1 x 20-Pin Camera Interface
1 x Battery for RTC
1 x Power In(5V), with switch and lamp
Oscillator Freq.
-12MHz
RTC
-Internal
Expand Interface
-1 x 34-Pin 2mm GPIO
-1 x 40-Pin 2mm System Bus
Dimension
-100 x 100(mm)
OS Support
-Linux 2.6.29
-Windows CE.Net 5.0
-uCos2
Content List
1 x S3C2440 board (Preload with Linux)
1 x Serial cable
1 x Net cable
1 x USB cable
1 x 5V power adapter
1 x Parallel port wiggler JTAG emulator(for H-JTAG)
1 x DVD-ROM with product reference
1 x TFT LCD: 7.0" 800x480 (Innolux AT070TN83 V.1), with touch panel
Material list on DVD-ROM
(1) H-JTAG Debugger
(2) Windows Flash Programmer SJF2440
(3) Linux Nand Flash Programmer Jflash-2440(source code included)
(4) Serial tool CRT, dnw
(5) Bitmap to C Language transfer tool
(6) USB Driver(WindowXP/2000)
(7) vivi source code(linux bootloader)
(8) LED test program(ADS1.20 project)
(9) 2440test program(ADS1.20 project), include :
key test, RTC test, ADC test, IIS Audio play(wav), IIS Audio record,
touch screen test, I2C test, Samsung 3.5"LCD, 640x480 TFT test
(10) WindowsCE 5.0 BSP and sample project files.
(11) Pre-compiled WinCE 5.0 image for evaluation
(12) Linux tool and kernel source code
- arm-linux-gcc-4.3.2 with EABI
- yaffs2 file system image maker -mkyaffs2image
- linux-2.6.29 for S3C2440 kernel source code(include DM9000, LCD driver, Audio,
Touch screen, YAFFS Source code, SD Card, RTC, Expand serial driver,
USB Camera,USB Mouse and Keyboard, U-Disk)
(13) Pre-compiled Linux image for evaluation
(14) Qtopia 2.2.0 source codes, web browser source codes
(15) uCos2 source code and binary images
(16) Schematics(Protel99SE/PDF)
(17) User Manual(English)
