RealView ULINK2 USB-JTAG Adapter

Specifications

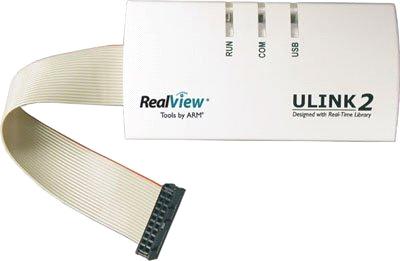

RealView ULINK2 USB-JTAG Adapter

ULINK2 is the latest ARM's RealView MDK supporting the use of emulator ULink simulator upgrade.
ULINK2 has all ULINK emulator features,
Increase serial debug (SWD), return clock, live agent functions.
The use of debugger and ULINK2 can easily carried out target hardware chip debugging (using on-chip JTAG, SWD, and OCDS) and flash programming.

ULINK2 New Features :
The standard Windows USB driver support ULINK2 Plug and Play
Support for ARM Cortex-M3 based on the serial debug
Support programs to run during the read-write memory, terminal emulation and serial debug output
Support for 10-pin connector (also supports 20-pin connector)

ULINK2 main functions :
High-speed USB communication interface to download user code
Storage Area / register View
Rapid single-step program is running
A variety of program breakpoints
On-Chip Flash Programming

ULINK2 Technical Specifications :
Features :
RAM breakpoint : Unlimited
ROM Breakpoints (ARM7 / 9) : 2 max
ROM Breakpoints (Cortex-M3) : 6 max
Execution breakpoints (Set While Executing) : V
Access Breakpoints (ARM7 / 9) : 2 max (R / W Only, With Value)
Access Breakpoints (Cortex-M3) : 4 max (With Value)
Trace History : X
Real-Time Agent : V
JTAG Clock :10MHz
JTAG RTCK Support (Return Clock): V
Memory R / W (Bytes / sec) : ± 28K
Flash R / W (Bytes / sec) : ± 25K
Single-Step (Fast) (Instructions / sec) v: ± 50

Support device list :
-Actel (ARM7/ARM9/Cortex Family)
COREMP7, Cortex-M1

-Analog Devices (ARM7/ARM9/Cortex Family)
ADuC7019, ADuC7020, ADuC7021, ADuC7022, ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7028, ADuC7030, ADuC7032, ADuC7033, ADuC7034, ADuC7036, ADuC7037, ADuC7038, ADuC7039, ADuC7060, ADuC7061, ADuC7062, ADuC7128, ADuC7129, ADuC7229

-ARM (ARM7/ARM9/Cortex Family)
Cortex-M0, Cortex-M1 (Altera), Cortex-M3

-Atmel (ARM7/ARM9/Cortex Family)
AT91C140, AT91F40416, AT91F40816, AT91FR40162, AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300, AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM7A1, AT91SAM7A2, AT91SAM7A3, AT91SAM7L128, AT91SAM7L64, AT91SAM7S128, AT91SAM7S16, AT91SAM7S161, AT91SAM7S256, AT91SAM7S32, AT91SAM7S321, AT91SAM7S512, AT91SAM7S64, AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7X512, AT91SAM7XC128, AT91SAM7XC256, AT91SAM7XC512, AT91SAM9260, AT91SAM9261, AT91SAM9261S, AT91SAM9263, AT91SAM9G20, AT91SAM9R64, AT91SAM9RL64, AT91SAM9XE128, AT91SAM9XE256, AT91SAM9XE512

-AustriaMicroSystems (ARM7/ARM9/Cortex Family)
AS3525

-Cirrus Logic (ARM7/ARM9/Cortex Family)
CS740110-IQZ, CS740120-IQZ, CS740130-IQZ

-Freescale Semiconductor (ARM7/ARM9/Cortex Family)
MAC7101, MAC7104, MAC7105, MAC7106, MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126, MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144, MC9328MX21, MCIMX27, MCIMX27L

-Infineon (8051 Family)
TLE7809, TLE7810, TLE7824, TLE7826, XC866-1FR, XC866-2FR, XC866-4FR, XC866L-1FR, XC866L-2FR, XC866L-4FR, XC878CM-13FF, XC878CM-16FF, XC886-6FF, XC886-8FF, XC886C - 6FF, XC886C-8FF, XC886CLM-6FF, XC886CLM-8FF, XC886CM-6FF, XC886CM-8FF, XC886LM-6FF, XC886LM-8FF, XC888-6FF, XC888-8FF, XC888C-6FF, XC888C-8FF, XC888CLM-6FF, XC888CLM-8FF, XC888CM-6FF, XC888CM-8FF, XC888LM-6FF, XC888LM-8FF

-Infineon (C16x/ST10/XC16x Family)
XC161CJ-16F, XC161CS-32F, XC164CM-16F, XC164CM-4F, XC164CM-8F, XC164CS-16F, XC164CS-16R, XC164CS-32F, XC164CS-32R, XC164CS-8F, XC164CS-8R, XC164D-16F, XC164D - 32F, XC164LM-8F, XC164S-32F, XC164SM-4F, XC164SM-8F, XC164TM-4F, XC164TM-8F, XC167CI-16F, XC167CI-32F, XC2264-56F, XC2264-72F, XC2264-96F, XC2267-56F, XC2267-72F, XC2267-96F, XC2285-56F, XC2285-72F, XC2285-96F, XC2286-56F, XC2286-72F, XC2286-96F, XC2287-56F, XC2287-72F, XC2287-96F, XC2365-48F, XC2365 - 56F, XC2365-72F, XC2387-72F, XC2766X-96F, XC2786X-96F, XE164F-24F, XE164F-48F, XE164F-72F, XE164F-96F, XE164G-24F, XE164G-48F, XE164G-72F, XE164G-96F, XE164H-24F, XE164H-48F, XE164H-72F, XE164H-96F, XE164K-24F, XE164K-48F, XE164K-72F, XE164K-96F, XE167F-48F, XE167F-72F, XE167F-96F, XE167G-48F, XE167G - 48F, XE167G-72F, XE167G-96F, XE167H-48F, XE167H-72F, XE167H-96F, XE167K-48F, XE167K-72F, XE167K-96F

-Luminary Micro (ARM7/ARM9/Cortex Family)
LM3S101, LM3S102, LM3S1110, LM3S1133, LM3S1138, LM3S1150, LM3S1162, LM3S1165, LM3S1332, LM3S1435, LM3S1439, LM3S1512, LM3S1538, LM3S1601, LM3S1607, LM3S1608, LM3S1620, LM3S1625, LM3S1626, LM3S1627, LM3S1635, LM3S1637, LM3S1751, LM3S1776, LM3S1850, LM3S1911, LM3S1918, LM3S1937, LM3S1958, LM3S1960, LM3S1968, LM3S2110, LM3S2139, LM3S2276, LM3S2410, LM3S2412, LM3S2432, LM3S2533, LM3S2601, LM3S2608, LM3S2616, LM3S2620, LM3S2637, LM3S2651, LM3S2671, LM3S2678, LM3S2730, LM3S2739, LM3S2776, LM3S2793, LM3S2911, LM3S2918, LM3S2939, LM3S2948, LM3S2950, LM3S2965, LM3S2B93, LM3S300, LM3S301, LM3S308, LM3S310, LM3S315, LM3S316, LM3S317, LM3S328, LM3S3651, LM3S3739, LM3S3748, LM3S3749, LM3S3759, LM3S3768, LM3S5632, LM3S5652, LM3S5662, LM3S5732, LM3S5737, LM3S5739, LM3S5747, LM3S5749, LM3S5752, LM3S5757, LM3S5762, LM3S5767, LM3S5768, LM3S5769, LM3S5791, LM3S5B91, LM3S600, LM3S601, LM3S608, LM3S610, LM3S6100, LM3S611, LM3S6110, LM3S612, LM3S613, LM3S615, LM3S617, LM3S618, LM3S628, LM3S6420, LM3S6422, LM3S6432, LM3S6537, LM3S6610, LM3S6611, LM3S6618, LM3S6633, LM3S6637, LM3S6730, LM3S6753, LM3S6911, LM3S6918, LM3S6938, LM3S6950, LM3S6952, LM3S6965, LM3S800, LM3S801, LM3S808, LM3S811, LM3S812, LM3S815, LM3S817, LM3S818, LM3S828, LM3S8530, LM3S8538, LM3S8630, LM3S8730, LM3S8733, LM3S8738, LM3S8930, LM3S8933, LM3S8938, LM3S8962, LM3S8970, LM3S8971, LM3S9790, LM3S9792, LM3S9B90, LM3S9B92, LM3S9B95, LM3S9B96

-Nuvoton (ARM7/ARM9/Cortex Family)
W90N740, W90N745, W90P710

-NXP (founded by Philips) (8051 Family)
P89LPC952, P89LPC954

-NXP (founded by Philips) (ARM7/ARM9/Cortex Family)
LH75400, LH75401, LH75410, LH75411, LH79520, LH79524, LH79525, LH7A400, LH7A404, LPC1751, LPC1752, LPC1754, LPC1756, LPC1758, LPC1764, LPC1765, LPC1766, LPC1768, LPC2101, LPC2102, LPC2103, LPC2104, LPC2104/01, LPC2105, LPC2105/01, LPC2106, LPC2106/01, LPC2109, LPC2109/01, LPC2114, LPC2114/01, LPC2119, LPC2119/01, LPC2124, LPC2124/01, LPC2129, LPC2129/01, LPC2131, LPC2131/01, LPC2132, LPC2132 / 01, LPC2134, LPC2134/01, LPC2136, LPC2136/01, LPC2138, LPC2138/01, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2194/01, LPC2210, LPC2210/01, LPC2212, LPC2212/01, LPC2214, LPC2214/01, LPC2220, LPC2290, LPC2290/01, LPC2292, LPC2292/01, LPC2294, LPC2294/01, LPC2364, LPC2365, LPC2366, LPC2367, LPC2368, LPC2377, LPC2378, LPC2387, LPC2388, LPC2420, LPC2458, LPC2460, LPC2468, LPC2470, LPC2478, LPC2880, LPC2888, LPC2917, LPC2917/01, LPC2919, LPC2919/01, LPC2921, LPC2923, LPC2925, LPC2927, LPC2929, LPC2930, LPC2939, LPC3130, LPC3131, LPC3180, LPC3220, LPC3230, LPC3240, LPC3250, SJA2010

-OKI (ARM7/ARM9/Cortex Family)
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002, ML675003, ML675011, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML67Q5250, ML696201, ML69Q6203

-Samsung (ARM7/ARM9/Cortex Family)
S3C2410A, S3C2440A, S3C44B0X, S3C4510B, S3F4A0KR, S3F4A1HR, S3F4A2FR

-Socle Technology Corp. (ARM7/ARM9/Cortex Family)
PC7130, PC7230

-STMicroelectronics (8051 Family)
uPSD3212A, uPSD3212C, uPSD3212CV, uPSD3233B, uPSD3233BV, uPSD3234A, uPSD3234BV, uPSD3253B, uPSD3253BV, uPSD3254A, uPSD3254BV, uPSD3312D, uPSD3312DV, uPSD3333D, uPSD3333DV, uPSD3334D, uPSD3334DV, uPSD3354D, uPSD3354DV, uPSD3422E, uPSD3422EV, uPSD3433E, uPSD3433EV, uPSD3434E, uPSD3434EV, uPSD3454E, uPSD3454EV

-STMicroelectronics (ARM7/ARM9/Cortex Family)
STA2051, STM32F101C4, STM32F101C6, STM32F101C8, STM32F101CB, STM32F101R4, STM32F101R6, STM32F101R8, STM32F101RB, STM32F101RC, STM32F101RD, STM32F101RE, STM32F101T4, STM32F101T6, STM32F101T8, STM32F101V8, STM32F101VB, STM32F101VC, STM32F101VD, STM32F101VE, STM32F101ZC, STM32F101ZD, STM32F101ZE, STM32F102C4, STM32F102C6, STM32F102C8, STM32F102CB, STM32F102R4, STM32F102R6, STM32F102R8, STM32F102RB, STM32F103C4, STM32F103C6, STM32F103C8, STM32F103CB, STM32F103R4, STM32F103R6, STM32F103R8, STM32F103RB, STM32F103RC, STM32F103RD, STM32F103RE, STM32F103T4, STM32F103T6, STM32F103T8, STM32F103V8, STM32F103VB, STM32F103VC, STM32F103VD, STM32F103VE, STM32F103ZC, STM32F103ZD, STM32F103ZE, STM32F105R8, STM32F105RB, STM32F105RC, STM32F105V8, STM32F105VB, STM32F105VC, STM32F107RB, STM32F107RC, STM32F107VB, STM32F107VC, STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2, STR712FR0, STR712FR1, STR712FR2, STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1, STR731FV2, STR735FZ1, STR735FZ2, STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1, STR750FV2, STR751FR0, STR751FR1, STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0, STR755FR1, STR755FR2, STR755FV0, STR755FV1, STR755FV2, STR910FAM32, STR910FAW32, STR910FAZ32, STR910FM32, STR910FW32, STR911FAM42, STR911FAM44, STR911FAM46, STR911FAM47, STR911FAW42, STR911FAW44, STR911FAW46, STR911FAW47, STR911FM42, STR911FM44, STR912FAW42, STR912FAW44, STR912FAW46, STR912FAW47, STR912FAZ42, STR912FAZ44, STR912FAZ46, STR912FAZ47, STR912FW42, STR912FW44

-Texas Instruments (ARM7/ARM9/Cortex Family)
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384, TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768

-Toshiba (ARM7/ARM9/Cortex Family)
TMPA910CRAXBG, TMPM330FDFG, TMPM330FWFG, TMPM330FYFG

-Zilog (ARM7/ARM9/Cortex Family)
ZA9L

What including:
1X RealView ULINK2 USB-JTAG Adapter
1X USB cable
1X 20 PIN quality cable
1X CD-ROM
