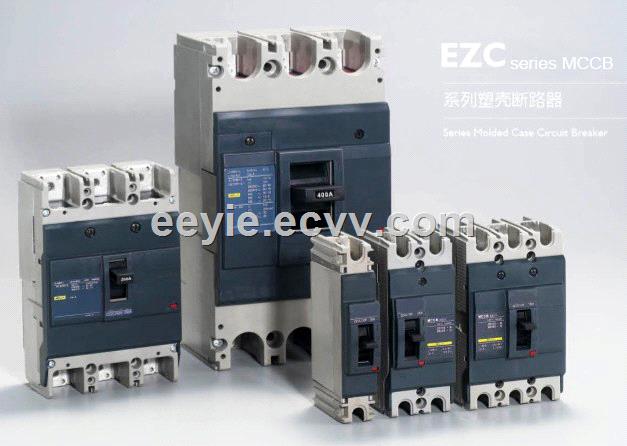

EZC Series Moulded Case Circuit Breaker

Shipping:	7
Payment Terms:	L/C, T/T, Western Union, MoneyGram, paypal

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Type: Moulded Case
Brand Name: chionly
Rated voltage: 440
Certificate: ce

Specifications

EZC series of MCCB are used in distribution network of AC50/60Hz, rated operational voltage 440V.

Avalable moldel:

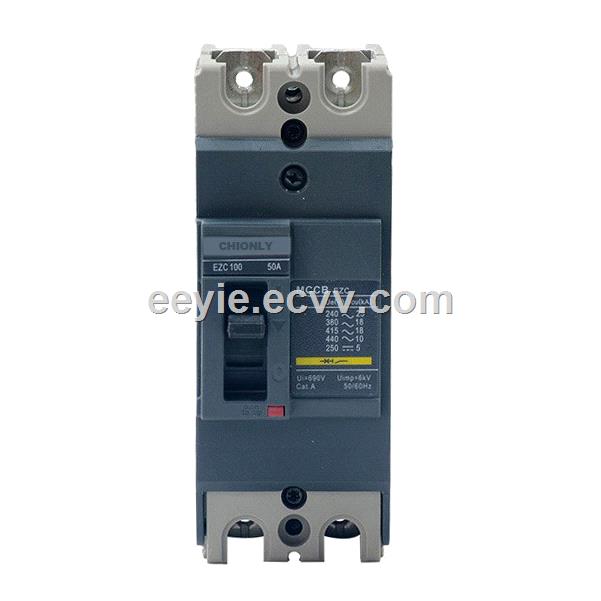

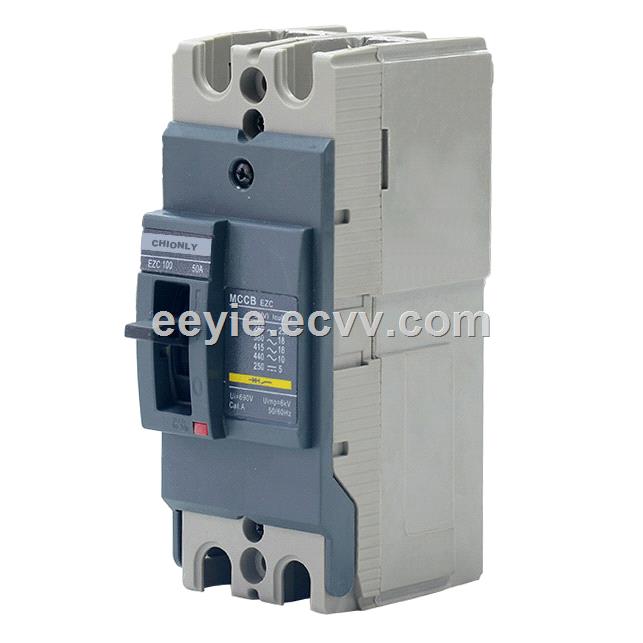

EZC100 1P/2P/3P/4P

EZC250 3P

EZC400 3P

EZC630 3P

EZC series of MCCB are used in distribution network of AC50/60Hz, rated operational voltage 440V and rated current from 15A to 400A. It is used for distributing power and Protecting circuit, power and electrical equipment from overload and Short-circuit damage, which will improve the reliability and continuity of Power supply.

BREAKING CAPACITY:

EZC100-250A H 36KA F 18KA

EZC400-630A M 50KA H 36KA

Item No.

CEZC100

CEZC250

Number of poles

1P, 2P, 3P, 4P

Control

Manual

with Toggle
with direct or extended rotary handle

Connections

Fixed

Front Connections/rear connections

Electrical Characteristics as per IEC60947-2 and EN60947-2

Rated Current(A)

15, 20, 25, 32, 40, 50,

63, 75, 80, 100

100, 125, 150, 160, 175,

200, 225, 250

Rated insulation Voltage(V)

690V

Rated Operating voltage(V)

AC50/60Hz, 440V

Rated Impulse withstand voltage(kV)

Uimp

6kV

Utilization Category

Endurance(C-O Cycles)

Mechanical

10000

8500

Electrical 440V

2000

1500

Protection

Overload Protection

Bimetal

Instantaneous Protection

Magnetic

Auxiliaries

Indication Contacts

AX
AL
AXAL

*
*
*

Voltage Releases

SHT
UVR

*24v,220v,380v
*

*
*

Dimensions(mm)

D X H X W

1P 81 X 130 X 25

3P:85.5 X 165 X 105

(20/ctn/59x37.5x23.5cm/28/31.5kg or 16/ctn/47x36.5x23.5cm/22.4/25.2kg)

4P: 85.5 X 165 x 140

2P 81 X 130 X50 (40/ctn/58.5x29x20cm/20/23kg)

3P 81 X 130 X 75 (30/ctn/42.5x29.5x30cm/21/24kg or 20/ctn/42.5x29.5x20.5cm/14/16lg)

4P 81 X 130 X 100 (20/ctn/48.5x29.5x23cm/19/21kg)

BREAKING CAPACITY:

EZC100-250A H 36KA F 18KA

EZC400-630A M 50KA H 36KA

Item No.			CEZC100	CEZC250
Number of poles			1P, 2P, 3P, 4P	3P
Control		Manual	with Toggle with direct or extended rotary handle
Connections		Fixed	Front Connections/rear connections
Electrical Characteristics as per IEC60947-2 and EN60947-2
Rated Current(A)		in	15, 20, 25, 32, 40, 50, 63, 75, 80, 100	100, 125, 150, 160, 175, 200, 225, 250
Rated insulation Voltage(V)		Ui	690V
Rated Operating voltage(V)		Ue	AC50/60Hz, 440V
Rated Impulse withstand voltage(kV)		Uimp	6kV
Utilization Category			A
Endurance(C-O Cycles)		Mechanical	10000	8500
		Electrical 440V	2000	1500
Protection
Overload Protection	Bimetal	*		*
Instantaneous Protection	Magnetic	*		*
Auxiliaries
Indication Contacts	AX AL AXAL	* * *		* * *
Voltage Releases	SHT UVR	24v,220v,380v		* *
Dimensions(mm)	D X H X W	1P 81 X 130 X 25		3P:85.5 X 165 X 105 (20/ctn/59x37.5x23.5cm/28/31.5kg or 16/ctn/47x36.5x23.5cm/22.4/25.2kg) 4P: 85.5 X 165 x 140
		2P 81 X 130 X50 (40/ctn/58.5x29x20cm/20/23kg)
		3P 81 X 130 X 75 (30/ctn/42.5x29.5x30cm/21/24kg or 20/ctn/42.5x29.5x20.5cm/14/16lg)
		4P 81 X 130 X 100 (20/ctn/48.5x29.5x23cm/19/21kg) EZC series of MCCB are used in distribution network of AC50/60Hz, rated operational voltage 440V and rated current from 15A to 400A. It is used for distributing power and Protecting circuit, power and electrical equipment from overload and Short-circuit damage, which will improve the reliability and continuity of Power supply. BREAKING CAPACITY: EZC series of MCCB are used in distribution network of AC50/60Hz, rated operational voltage 440V and rated current from 15A to 400A. It is used for distributing power and Protecting circuit, power and electrical equipment from overload and Short-circuit damage, which will improve the reliability and continuity of Power supply. BREAKING CAPACITY: EZC series of MCCB are used in distribution network of AC50/60Hz, rated operational voltage 440V and rated current from 15A to 400A. It is used for distributing power and Protecting circuit, power and electrical equipment from overload and Short-circuit damage, which will improve the reliability and continuity of Power supply.
