Motor Start Cpapcitor

Supply Ability:	600,000 Piece/Pieces per Month
Shipping:	15~20workdays
Payment Terms:	L/C, T/T(Bank Transfer), Western Union

Inquiry Now

Product Details

Place of Origin:	Zhejiang in China
Packaging Details:	Standard export carton

Specifications

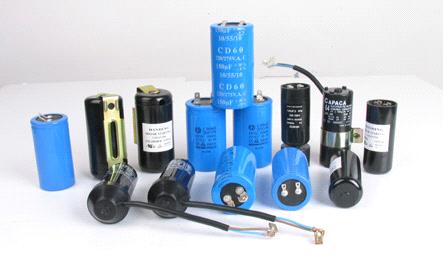

Feature and use: CD60 series aluminum electrolytic capacitor for starting A.C. motor are made of by the aluminium foil bar as the poles, alumina as dielectric, mushy state electrolyte and all of devices in one compact unit which can be sealed separetely in bakelite or ABS case. The connection types are of dual quick-connect terminal, wire and cable type. The specific type of capacitors with high electrical characteristics are widely used in single phase A.C.motor with tated voltage of 110V-330V and the frequency of 50HZ-60HZ to get high rotary touque at low starting current, and also the motor at a lower starting current under high torque.

Options available at an added cost include bleeder resistors.

This type capacitor is suitable used in single phase A.C.motors, compressor, etc.

Technical data and specification:	CD60
Capacitance Range:	21 to 1280μF
Voltage Ratings:	110Vac to 330Vac
Capacity volume variance:	0～+20%
Operating Temperature Range:	-40°c to +65°c
Operating Frequency:	50 to 60 HZ
Loss tangent:	tgδ<0.10 tgδ<0.15(100HZ)
Dielectric Material	Aluminium foil
Case Material:	Bakelite or ABS case
Terminal:	2 to 4 quick-disconnect,Wire，Cable and with screw
