Corrugated Sheet Forming Machine

Corrugated Sheet Forming Machine:MTC MACHINERY:Corrugated Forming Machine,Corrugation Forming Machine,Corrugated Roll Forming Machine,Corrugated Sheet Roll Forming Machine:
Description of Corrugated Roofing Sheet Roll Forming Machine,Corrugated Roll Forming Machine,Corrugation Roll Forming Machine,Corrugated Sheet Roll Forming Machine:This Corrugated Steel Panel Roll Forming Machines are for the manufacture of Metal corrugated Roof sheets and Siding Panel. Our Corrugated Steel Panel Roll Forming Machine are special for manufacturing various high quality roof & wall cladding. With our engineer's many times improvements, the roof machine design is perfect. The profile surface is smooth and power fee is lower, driven by chain. The whole line consists of uncoiler and its base, coil sheet guiding equipment, roll forming system, post-cutting equipment, hydraulic station, controlling system, and run out table.

Further information, pls contact with us!

A.Main technical parameter

1.manual decoiler:manual expansing, passive uncoil
2.weight capacity of deociler:5T
3.machine stand:welded structure steel
4.type of forming machine:single station with chain transmission
5.material of roller:high grade 45 steel
6.surface of roller coated with chrome 0.05mm thickness

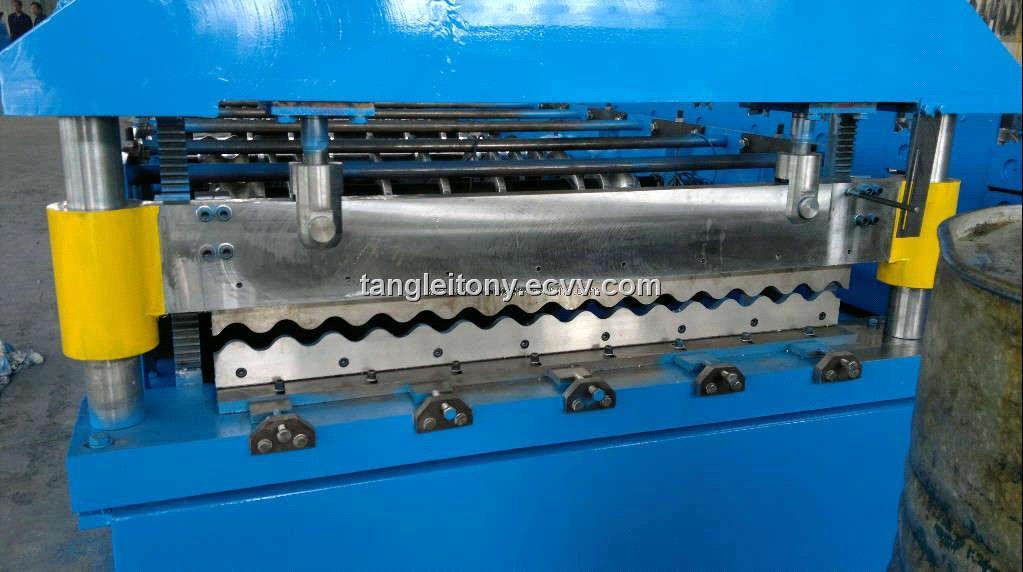

7.type of cutting:hydraulic cutting
8.material of blade:Cr12
9.heat treatment of cutting blade:HRC58-60
10.transducer:ABB
11.Computer adopt PLC control, Mitsubishi

B.Technical process:
Manual decoiler---feed with guide---roll forming---cut with fixed length---output with table

C.Equipment
Manual decoiler, main roll forming machine, hydraulic cutting device, hydraulic station, PLC computer control, output table
