Product Details

Place of Origin:	Shandong in China

Specifications

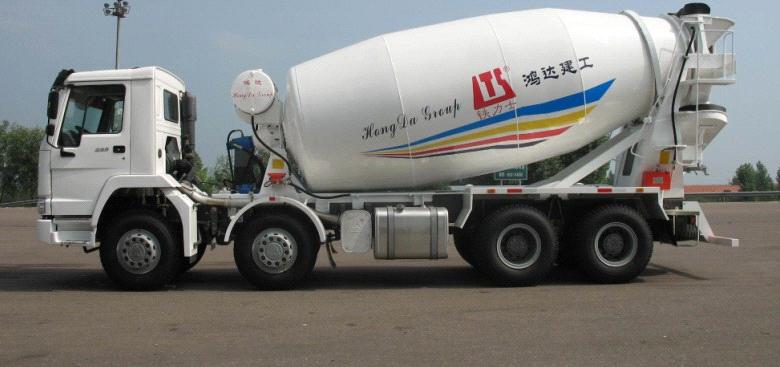

9m3 capacity Concrete Mixer Truck / Concrete Truck is one of our main models. The main parameter is as followings:

name		unit	parameter
			9m3
truck parameter	Model		HDT5259GJB
	Total length	Mm	9050
	Total width	Mm	2490
	Total height	Mm	3750
	Chassis model		HOWO ZZ1257N3847C
	max. G.V. W	Kg	25000
	curb weight	Kg	13500
	wheel base1	Mm	3825
	wheel base2	Mm	1350
	front tread	Mm	2022
	rear thead	Mm	1830
	tyre model		12.00-20
	frong overhang	Mm	1500
	rear overhang	Mm	2375
	min. Turing radius	M	9.8
	max. Speed	Km/h	90
	steering device(germany)		ZF8098
	oil consumption with in 100kilos	L	34
engine parameter	engine model		WD615.95
	engine configuration
	cylinder arrangement		6cylinder in line
	max. Engine output	Kw	247(2200r/min)
	max. Engine torque	n. M	1350(1300-1600)
	PTOoutput	n. M	600(2200r/min)
Wording device	agitator cubage	M3	14.7
	agitator mixing cubage	M3	9
	agitator leaning angle		13.5
	agitator rotation speed	r/min	0-14
	feeding speed	M3/min	≥ 3.5
	discharging speed	M3/min	≥ 3
	landslide degree	Mm	100~230
	surplus rate	%
	water tank volume	L	400

The excellent features of our products:

-The stirring vat driving system adopts original imported AMERICA and GERMANY closed circuit hydraulic system: pump, motor and redactor. Hydraulic parts such as oil tank, radiator, filter, hose connector all adopt imported parts in order to ensure hydraulic system with long using life.

-Stirring vat body and helical vanes all adopt B520JJ single-purpose special fine crystal particle hard wearing steel plate from Shanghai BAOGANG while the easy wearing positions having much contact with concrete such as feeding and discharge bucket chutes, etc. Are also stuck with hard wearing steel plate, which correspondingly give the product rather long using life.

-Multiple mixing arms are set in stirring vat while square and round holes are scientifically arranged in mixing vanes, which both realize real three-dimensional mixing work of concrete with discharge surplus nearly achieving zero and with concrete eduction greatly avoided.

-Mobile discharge chute can be locked at 4 different positions to achieve discharge operation in different directions. The whole truck adopts blasting and baking finish to produce an elegant and pleasing outline with such advantages as smooth and reliable slewing, speedy discharge, low surplus rate, handy operation, and long using life.

Shandong Hongda Construction Machine Co., Ltd is a large and famous concrete machinery manufacturer in China.
