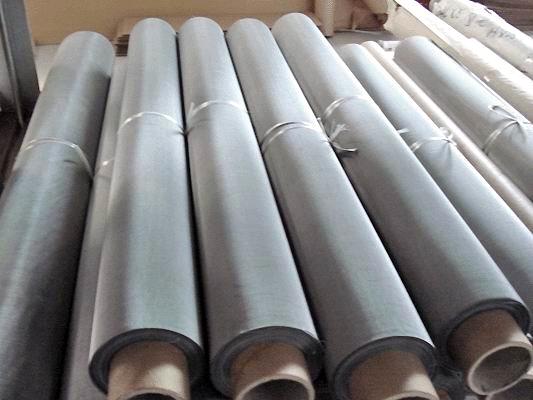

Stainless Steel Metal Mesh

Inquiry Now

Product Details

Place of Origin:	Hebei in China

Specifications

Material: SUS302\304\316\304L\316L stainless steel wire.

Weaving: Plain weave, twill weave, or Duch weave which include plain dutch weave and twill dutch weave.

Performance: Resistant to acid, alkali, heat, wear etc..

Uses: Mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.

Specification list of stainess steel mesh

mesh	wire diameter		aperture		open area (mm^2)	weight (Pound) /100 Square foot
mesh	sw	mm	Inch	mm	open area (mm^2)	weight (Pound) /100 Square foot
1x1	.080	2.03	.920	23.37	84.6	41.1
2x2	.063	1.60	.437	11.10	76.4	51.2
3x3	.054	1.37	.279	7.09	70.1	56.7
4x4	.063	1.60	.187	4.75	56.0	104.8
4x4	.047	1.19	.203	5.16	65.9	57.6
5x5	.041	1.04	.159	4.04	63.2	54.9
6x6	.035	.89	.132	3.35	62.7	48.1
8x8	.028	.71	.097	2.46	60.2	41.1
10x10	.025	.64	.075	1.91	56.3	41.2
10x10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12x12	.020	.508	.063	1.60	57.2	31.6
14x14	.023	.584	.048	1.22	45.2	49.8
14x14	.020	.508	.051	1.30	51.0	37.2
16x16	.018	.457	.0445	1.13	50.7	34.5
18x18	.017	.432	.0386	.98	48.3	34.8
20x20	.020	.508	.0300	.76	36.0	55.2
20x20	.016	.406	.0340	.86	46.2	34.4
24x24	.014	.356	.0277	.70	44.2	31.8
30x30	.013	.330	.0203	.52	37.1	34.8
30x30	.012	.305	.0213	.54	40.8	29.4
30x30	.009	.229	.0243	.62	53.1	16.1
35x35	.011	.279	.0176	.45	37.9	29.0
40x40	.010	.254	.0150	.38	36.0	27.6
50x50	.009	.229	.0110	.28	30.3	28.4
50x50	.008	.203	.0120	.31	36.0	22.1
60x60	.0075	.191	.0092	.23	30.5	23.7
60x60	.007	.178	.0097	.25	33.9	20.4
70x70	.0065	.165	.0078	.20	29.8	20.8
80x80	.0065	.165	.0060	.15	23.0	23.2
80x80	.0055	.140	.0070	.18	31.4	16.9
90x90	.005	.127	.0061	.16	30.1	15.8
100x100	.0045	.114	.0055	.14	30.3	14.2
100x100	.004	.102	.0060	.15	36.0	11.0
100x100	.0035	.089	.0065	.17	42.3	8.3
110x110	.0040	.1016	.0051	.1295	30.7	12.4
120x120	.0037	.0940	.0064	.1168	30.7	11.6
150x150	.0026	.0660	.0041	.1041	37.4	7.1
160x160	.0025	.0635	.0038	.0965	36.4	5.94
180x180	.0023	.0584	.0033	.0838	34.7	6.7
200x200	.0021	.0533	.0029	.0737	33.6	6.2
250x250	.0016	.0406	.0024	.0610	36.0	4.4
270x270	.0016	.0406	.0021	.0533	32.2	4.7
300x300	.0051	.0381	.0018	.0457	29.7	3.04
325x325	.0014	.0356	.0017	.0432	30.0	4.40
400x400	.0010	.0254	.0015	.370	36.0	3.3
500x500	.0010	.0254	.0010	.0254	25.0	3.8
635x635	.0008	.0203	.0008	.0203	25.0	2.63
