Road Marking

Inquiry Now

Product Details

Place of Origin:	Guangdong in China

Specifications

Vibration guide line may be intensively applied in toll plaza of trunk line, ramp exit, mountainous and hilly area, continuous sharp curve, downgrade section and highway terminals (grade intersection of highway exit with ordinary road), central separator, edge solid line, dangerous section and etc.

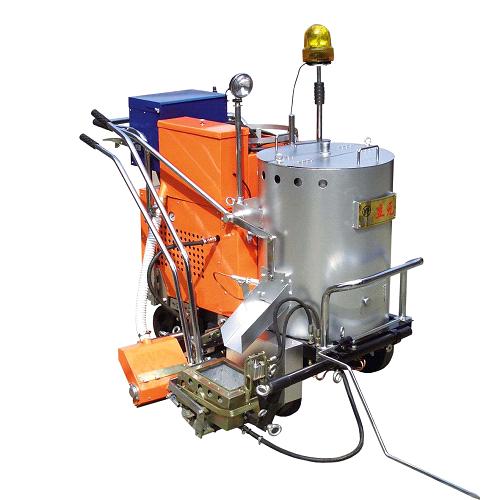

YDT-2 self-propelling vibrating type raising line marker is our latest unique product, introducing foreign advanced technologies, optimized functions, high integration property, with advantages of high construction efficiency, reliable performance, and easy operation and maintenance.

System features:

● Automatic traveling forward and backward with stepless speed changing.

● Microcomputerized control system, electronic display, Chinese interface

● Raising size and distance setting at will, multipurpose, easy update

● Traveling by hydraulic driving, powerful propelling, quicker speed and higher efficiency

● Safety indicator, night construction light

● Paint funnel of special material, high-temperature resistant and corrosion proofing, deformation free

Hard alloy grounded knife, movable design of eccentric bushing

■Technique parameters:

Power: HONDA 5.5HP gasoline engine

Volume: 1350mm(L)×800mm(W)×1050mm(H)

Weight: 245kg

Painting width: common type of 150/200/300mm, customization of 100/400/450mm

Base line thickness: 1.0-2.5mm

Raising height: 3-7mm

Paint bucket: capacity of 90kg.

Glass ball: 10kg

Traveling speed: 0-10km/h

line marker speed: ＞400m/h

Max. climbing angle: 15°

Direction control: rear tail tire locking unit enabling the machine moving straightly and smoothlyHeating fuel: LPG(portable LPG tank, 10 or 15kg)

Vibration guide line marking is intensively applied in developed countries at present. The equipment is internationally advanced in technology. Its outline in concave convex shape, the primer plus the raising part is in a height of 5-7mm. Vibration guide line has the features of contamination resistance, good whiteness, alkali resistant, durability, good wear resistance, flexibility, weathering resistance, strong vibratory sense, light reflection and indication at raining night, excellent effect and etc. The usage locations are relatively concentrated and the general cost is small. It may be used based on the geological condition and traffic volume.

Major usage:

Warning the drivers to drive as per the lane regulations and reduce the speed, avoiding fatigue driving and forced reducing of speed, improving the traveling safety.

1. 300mm wide raising guide line

Mainly marked at: toll plaza of trunk line, ramp exit, mountainous and hilly area, continuous sharp curve, downgrade section and highway terminals (grade intersection of highway exit with ordinary road), institution/corporate and school entrance for speed reducing. Based on the location, repetitive setting is allowed and the setting shall be vertical to the driving direction.

2. 150/200mm wide raising guide line

Mainly at central separator, edge lines, dangerous section and etc. Parallel to the driving direction.

3. Vibration guide line color: white and yellow light reflecting lines(yellow single or double solid line when setting at central separator interchange).

Raising spacing: 3 types of standard spacing, computer control, adjustable at will.

Setting characteristics:

Speed reducing at plaza, skid proofing on curve, light reflection at raining night, vibration warning

1. Speed reducing warning at toll plaza, on curve and dangerous section.

2. Skid proof: skid proofing on curve section, same friction as on the pavement at raining time.

3. Light reflection at raining night: vibration double yellow lines and vibration edge lines still reflect light at raining night to guarantee the normal drive which can not be achieved by ordinary guide line.

4. Vibrating warning: in case of fatigue driving, the vehicle will vibrate and shape accompanied with moaning produced by the tire on the raised edge guide lines before getting out of the road which prompts the driver to adjust the direction and prevents accidents. Therefore it is a favorable active protection means. According to the instance statistics of Japan experts, maintaining section accidents have be decreased by 40% after using raised vibrating guide lines. Accident rate has greatly decreased in Chengdu-Chongqing Highway after using raised vibrating guide lines.

The first vibrating guide line marker in China improved the advancement of domestic road line marker types by 10 years and ended the history relying on importing high-end line marking equipment in the domestic road line marking equipment industry. This type of equipment has been applied in large scale vibration guide line construction and the product quality is stable and reaches the internationally advanced level.
