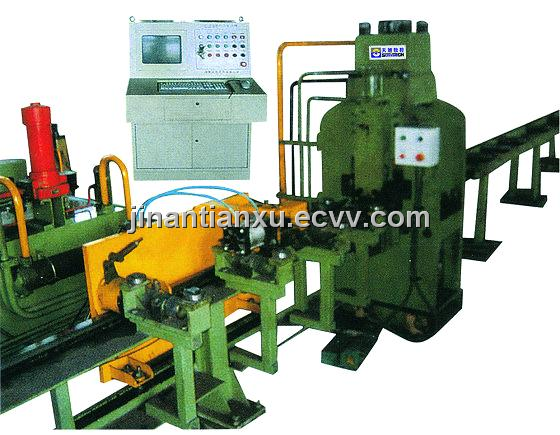

Semi-Automatic CNC Angle Punching and Marking Machine

Inquiry Now

Place of Origin:	Shandong in China
Packaging Details:	for shipment

Specifications

Applicable industry:

The machine is the special equipment used for angle steel marking,punching and half-automatic production in the field of power and telecommunication.

Product feature:
1.Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.

2.Key hydraulic, pneumatic and electric parts all imported.

3.Easy programming and can directly use the program data made by lofting software.

4.Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece.

5.All marking, punching in automatic completeness so as to lighten the working strength of workers with well advantages than other manufactures.

6.Only need to input size of workpiece, diameter of holes, stadia and quantity of workpiece when edit program, or use CAD/CAM direct conversion.

7.The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.

8.Machine adopts closed frame with good rigidity.

9.The NC carriage infeed workpiece through double clamps.

10.With self-diagnosis failures function.

Product Basic Parameter:

Model	TAP20A
Functions	Punching&Marking
Angles size (mm)	L40×40×3~L200×200×16
Angles size (mm)	L40×40×3~L200×200×16
Max. diameter of punching(mm)	Φ26
Punches(piece)	2
Stadia of punching(mm)	20~170 (Stepless)
Min. end distance of punching(mm)	25
Nominal force of punching	800
Nominal force of punching(kN)	1000
No.of character group (piece)	1
No.of character in each side(piece)	8
Character size (mm)	14x10x19 By customers’request
CNC axes (piece)	2
Positioning speed of servo motor(m/min)	40
Programming mode	Input by keyboard, RS232 interface, floppy disk and USB interface
Precision	Accordance with GB2694
Overall dimensions L×W×H(m)	22.5×6×1.8
Weight of machine(kg)	Approx. 11000
Weight of machine(kg)	Approx. 11000
