Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

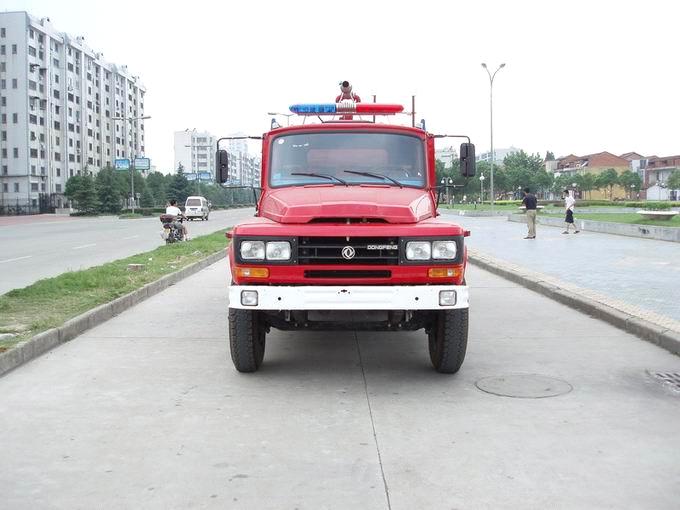

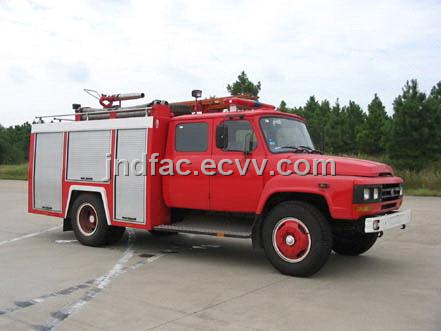

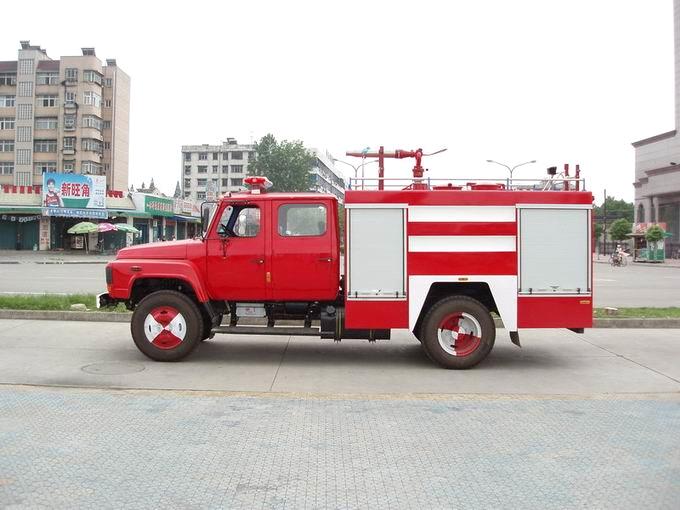

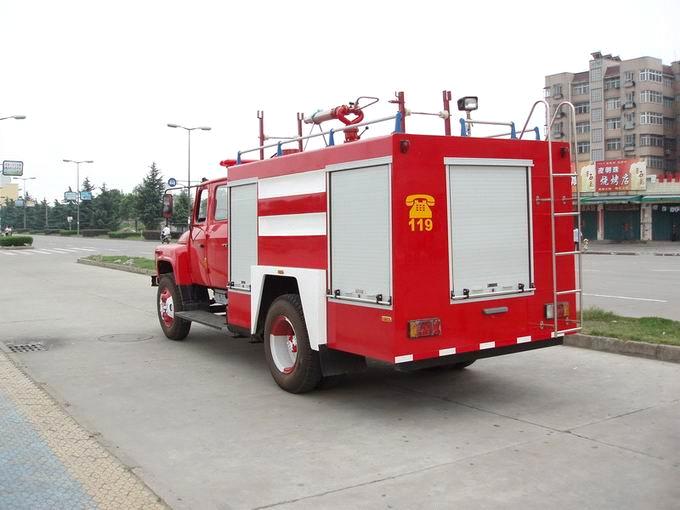

Dongfeng Foam Fire Truck 3500L
| FOB Price: | 20,000.00 - 70,000.00 USD/Set |
|---|---|
| Supply Ability: | 230 Set/Sets per Month |
| Shipping: | in stock,15 workdays if build to order |
| Payment Terms: | L/C, T/T(Bank Transfer) |
| Place of Origin: | Hubei in China |
|---|---|
| Packaging Details: | in 2mm antirust wax,in container/bulk/roro ship. Vehicle volume:52CBM. |
Specifications
|
Summary
|
|||
|
Reasonable layout, novel modeling, rear position fire pump and compact structure.Widely used in petrol-chemical enterprise, oil depot, storehouse, shop and terminal market.Can be used as main fire truck for professional fire brigade of large and medium city.
|
|||
|
Basic Information
|
|||
|
Vehicle name
|
Foam fire truck
|
Chassis:
|
EQ1092F19DJ
|
|
Outline size(L×W×H) (mm)
|
7015×2331×3052
|
Cargo inline size
(L×W×H)(mm):
|
/
|
|
Rating mass(kg)
|
3450
|
Empty mass(Kg):
|
5675
|
|
Full mass(kg)
|
9125
|
Emission standard
|
Euro 2
|
|
Engine Information
|
|||
|
Model
|
YC4E140-20
|
Type
|
Water cooling in-line four-cylinder turbocharged diesel engine
|
|
Power/displacement(KW/ML)
|
105/4257
|
Manufacture
|
Guangxi Yuchai machinery joint stock company
|
|
Chassis Information
|
|||
|
Wheelbase(mm):
|
3950
|
Axle load(kg) F/R
|
Front :2800/Rear :8000
|
|
Tire
|
9.00-20,9.00R20
|
Max speed (km/h):
|
90
|
|
Front overhang(mm)
|
1065
|
Rear overhang(mm)
|
1915
|
|
Front track(mm)
|
1810
|
Rear track(mm)
|
1800
|
|
Approach angel(°)
|
34
|
Departure angle(°)
|
17
|
|
Steering
|
Power steering
|
Brake
|
Spring brake
|
|

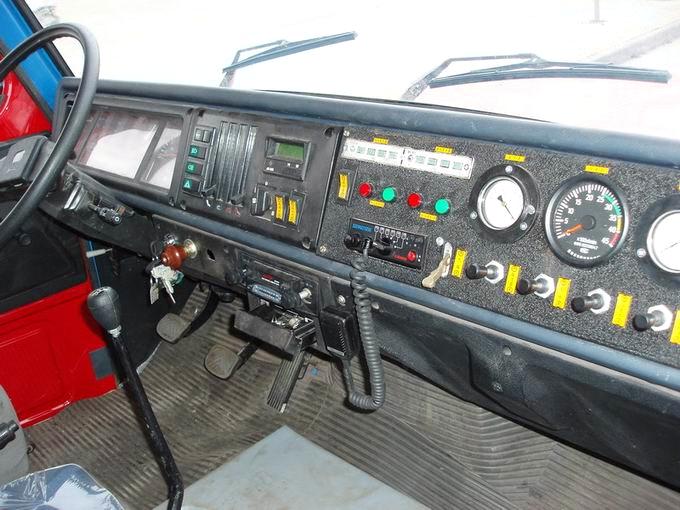

Cabin
|
Pointed head 2 rows 4 doors
|
||
|
Special function
|
|||
|
Tank capacity(L)
|
Water tank: 2000L Foam tank: 1000L
|
||
|
Fire monitor
|
Model: PP24 dual-use monitor Water Range: ≥45m/1.0MPa Foam range: ≥40m/1.0MPa
|
||
|

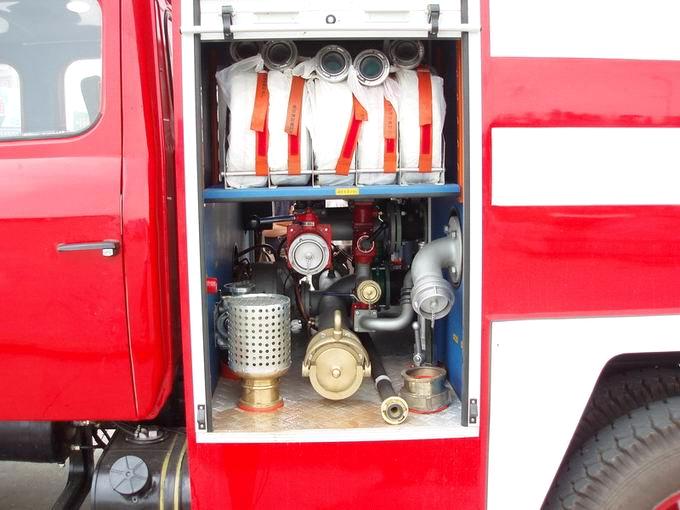

Fire pump
|
Model: BS30 Flow: 30L/S Pressure: 1.0MPa
Model: CB20.10/15.30 Flow: 30L/s/1.0MPa 15L/ s/2.0MPa |
||
All the data above is for reference, we keep the right to improve our product.
