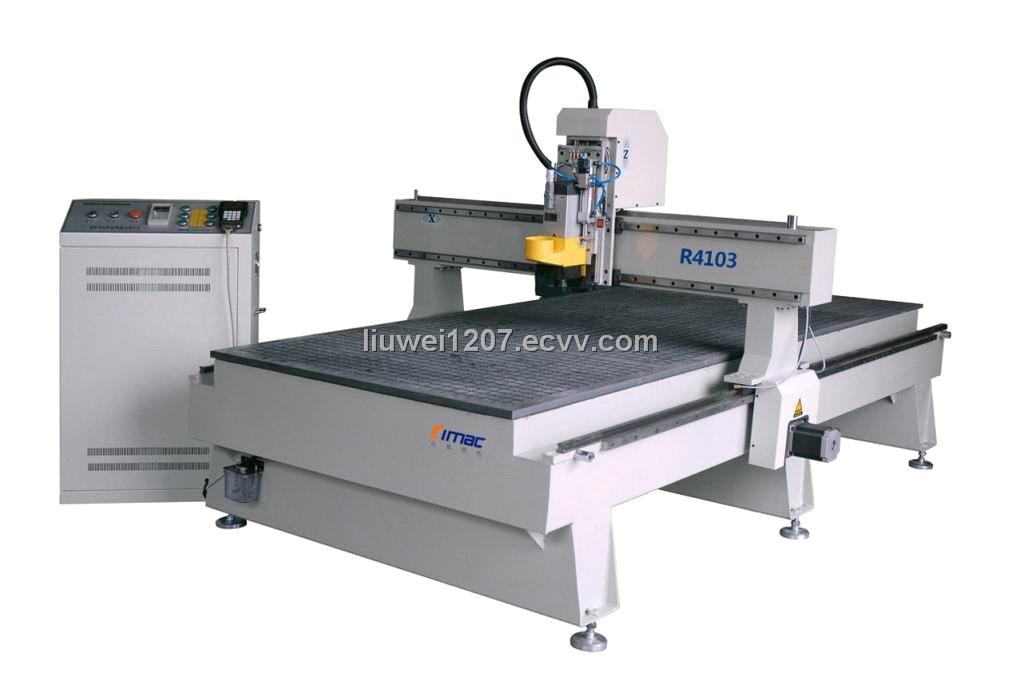

CNC Router Machine (R4000)

Inquiry Now

Related products from verified members

3 Axis Woodworking CNC Router & Engraver Ma...

Price:10,000.00-60,000.00 USD/Set

Min. Order:1 Set
Sailcloth Laser Engraving Machine CY-E13090C

Price:2,000.00-20,000.00 USD/Set

Min. Order:1 Set
Multi head CNC Router 3 Axis, CNC Machine price

Price:8,888.00-18,888.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Tianjin in China

Specifications

R4000 series with one spindle

R4000 series CNC ROUTER is with one spindle. The gantry of R4000 series is also made of steel, so compared to R3000 series, it can better hold high power spindles.

R4000 series features

1. Rigid all steel machine body

2. 30mm Taiwan linear guide rail, heavy-duty bearing, 32mmball screw from Germany.

3. Y axis with two rack design ensures high speed and big power.

4. Machine can continue working from the point where it stops in case of sudden power off, with pre-calculation of working time.

5. Compatible with TYPE3, ARTCAM, CASTMATE, UCanCAM and many other CAD/CAM software.

6. Vacuum table (standard), T-slot table (option)

Specifications

MODEL	R4101	R4102	R4103	R4204	R4304
Max. Working Area (mm)	1270 x 1270 x 400	1270 x 1800 x 400	1270 x 2540 x 400	1524 x 3048 x 400	2032 X 3048 x 400
Z axis Clearance (mm)	200	200	200	200	200
Max. Traverse (m/min)	35	35	35	35	35
Max. Cutting Speed (m/min)	20	20	20	20	20
Repeatability (mm)	0.025	0.025	0.025	0.025	0.025
Automatic Tool Calibrator	Standard	Standard	Standard	Standard	Standard
Handheld Keypad	Standard	Standard	Standard	Standard	Standard
File Format Acceptable	HPGL,G code	HPGL,G code	HPGL,G code	HPGL,G code	HPGL,G code
Weight (kg)	800	850	900	1000	1100

Options

1. Spindle

Water-cooling spindle from China: from 1..5kw to 5kw
Italian fan-cooled spindle: from 3kw to 6kw

2. Vacuum Pump

Water-ring Vacuum Pump: 5hp, 90CBM/H; or 10hp, 180CBM/Hr
Oil Vacuum Pump: 100CBM/Hr, or 160CBM/Hr, or 250CBM/Hr, 10hp

3. Dust Collector

2.2kw, one bag
3kw, two bags
4kw, two bags
5.5kw, two bags
7.5kw, four bags

4. CAD/CAM software

ArtCAM, TYPE3, Castmate, UCanCAM

Air coolant system for metal cutting
