Product Details

Place of Origin:	Liaoning in China
Packaging Details:	40HQ

Specifications

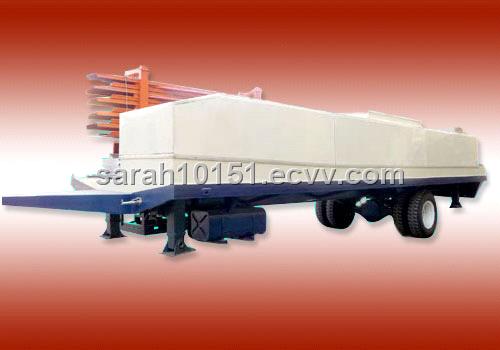

Huifeng HF-MIC650 Roll Forming Machine(ABM650,HF-650 Super K Span，UBM650)

MIC 650 drawing:

MAIN TECHNICAL SPECIFICATION

Size: 10400mm × 2250mm × 2300mm

Total Weight: about 15000KG

Main Motor Power: 15.7KW forming power is 7.5kw ; bending power is 3.0kw; cutting power is 3.0kw; conical power is 2.2kw

Working Speed: Straight sheet: 15m/min

Arch sheet: 13m/min

Sewing: 6m/min

Material of rollers: 45# steel, quenched HRC 58-62

Material of roller shafts: 45# steel, adjusted

Material of cutting blade: T 12 steel (Taiwan Airline Technique)

PLC Type: Germany Siemens

Step of rollers: 13 steps

Feeding Width: 914mm

Effective Width: 650mm

The depth of the groove: 181mm

Thickness of the coil: 0.6-1.5mm

Operating factor of the panel: 71%

Proper span: ≤24m

We provide you all the relevant accessories for free, with which you can begin to do projects immediately.

technical parameter

I Description of the HF-MIC 650 machine
This MIC-650 machine is developed by ourselves with technology similar to ABM MIC-650 forming machine. It is comprised of mechanical expansion decoiler, straight panel forming unit, curving panel forming unit, hydraulic mould cutting device or electric mould cutting device, control system(PLC) or manual controller, out put shelf for straight sheet and curve panel,decoiler. All parts are installed on a mobile chassiss. So it is suitable for site operating.
II Features
1. All the rollers are forged from the high quality structural steel and are processed intensely. The surfaces of the rollers are plated with hard chromium. The rollers have a high hardness and long operating life.
2. The power set to automatically transport the colored steel sheet is equipped in the forming press section, which can press the colored steel sheet with the thickness of 0.5~1.5mm. It is not needed to frequently adjust the clearance between the pressing rolls when pressing the sheet with different thickness, which can make the sheet come out from machine normally without scuffing of the coating film of the sheet.

3. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument. The helping hand wheel and the counter are used in the adjustment of the bending of arch sheet, which makes the operation simple and guarantees the quality and the dimensional precision.
4. The hoisting tool is light and handy (The weight of hoisting tool of the United States is 30KG. And the weight of hoisting tool of our company is 2KG). It is convenient to install and uninstall. It hoisting speed is very fast.

The joining type of the roof is self-lock, which makes it easy to install and safe with excellent water proof and storm resistance. The curving roof can directly be produced on worksite, effectively lowering the cost. The product is widely used on large-scale and mid-scale industrial construction, such as factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre and so on.
