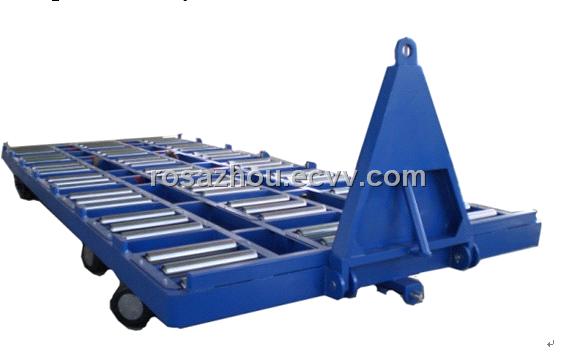

18T Pallet Trailer

Supply Ability:	8 Piece/Pieces per Month
Shipping:	20 days
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Shanghai in China
Packaging Details:	Naked in 20GP or 40HC

Specifications

Product Functions 1. The frame of the trailer is welded by standard channel steel and steel pipe and it has the characteristics of high intensity, impact-resistance and firmness. 2. The towbar has multi-trailer connection and braking dual functions. 3. The front wheels adopt 4 sets of universal casters. It can easily change the direction. 4. The dolly adopts the ultra-wearable solid tyre, the service life is long 5. According to the container and pallet size, the trailer is equipped with active space-limiting device and the two sides are equipped with fixed space-limiting device to prevent the trailer from flopping. 6. Loading form: rear loading 7. It can load P1P, P6P, PLA, FQA, PMW, P7E aviation collection paneling. Product Technical Parameters Overall dimension: 8030x2720x620 mm Flat dimension: 6686x2720mm Height of working surface:520mm Tyre specification: front 266x145mm, back 400x133mm Loading form: 18,000kgs Own weight: 3,500kgs Material of Main Component Frame:standard channel steel (8#) Roller: seamless steel tube (89x4mm) Towbar:standard channel steel (10#)
