Specifications

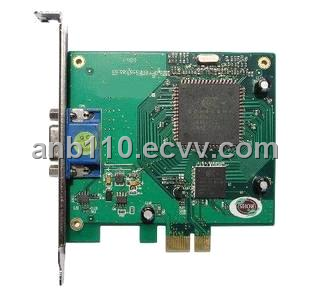

| Mode | S3108 |
| Spec. | Adopt Conexant 25853 11bit decode chipset |
| Video Input: 8 channels | |
| Slot: PCI – Express | |
| Image Quality: 11 bits ADCs super high quality | |
| Image Compression: h.264 / MPEG - 4 | |
| Display Rate: 200fps | |
| Compression Ratio: CIF:10-200 M/H/C D1:40-640 M/H/C | |
| Record Mode: Continuous recording, Motion recording, Alarm recording. | |
| Playback: Intelligent search, multi-channel playback | |
| Backup: Network remote backup, VCD, AVI, EXE backup | |
| Video File Format: AVI | |
| Network Protocol: TCP/UDP | |
| Operating System 2000 XP Vista | |
| CPU：Intel | |
| Video Card：Intel，ATI，nVIDIA | |
| Highlight | PCI Express interface to PC, with enough bandwidth to support at most 12 channels full D1 data transfer |
| Best video quality comes from 11-bits ADCs hardware | |
| Private JMVT adaptive noise reduction algorithm, effectively increase visual effect, reduce bit rate and save hard-disk space | |
| Recorded in AVI format, can be played back by most video players | |
| H.264 optimized encoding algorithm, realize multi-channel Full D1 real time coding (CPU minimum requirements for a 8-channel Full D1 preview and record is Intel Core 2 E5200) | |
| Function | Feature: |
| Support video source in PAL and NTSC format | |
| Various resolutions supported from CIF to D1 | |
| Support multi-cards plugged in one PC | |
| 1~25 channels monitoring in one screen, more channels are supported by channel rotation and page turning | |
| Various recording modes: continuous recording, scheduled recording and motion triggered recording | |
| Multi-level authority management for different users | |
| Support snapshot(screenshot) | |
| Support video motion detection and delivering snapshot image via Email when motion detected | |
| Networking： | |
| One software supports local monitoring and remote monitoring simultaneously | |
| Support both local PTZ control and remote PTZ control | |
| Supports remote recording with recording files saved in both server and client side | |
| Built-in HTTP server enables remote monitoring by web browser | |
| Built-in DDNS serve support free domain name application service | |
| Playback： | |
| Playback in D1 resolution | |
| Multi-channel playback simultaneously, high speed playback, halve identification time | |
| Multiple video file backup solutions, DVD, VCD, etc | |
| Others： | |
| Multi-language Support | |
| Friendly interface and easy operation | |
| Complete help files and video demonstration |
