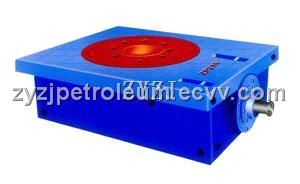

Rotary Table (API 7K)

FOB Price:	1111.00 USD/Set
Supply Ability:	20 Set/Sets per Month
Shipping:	30days
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Product Details

Place of Origin:	Henan in China
Packaging Details:	steel basket,waterproof fabric

Specifications

Brief Introduction

Rotary Table is important part to drive and hold the drill string.
The products conforms to API Spec. 7k, have the certificate of authority to use the official API monogram

Technical Performances

1.The casing is casting steel and steel plate welding structure, the basement is steel casting, it welded with steel plate after coarsely machining, and finish machining after integral annealing for stress elimination
2.Transmission gear is harden tooth spiral bevel gear drive, have higher loading capacity, smooth running and long service life.
3.The input shaft is alloy forging by quench hardening and tempering, has good mechanical property, fit for big torsional moment operation. chain wheel and flange can be equipped on the shaft end, meet the requirement of all transmission mode.
4. Master bushing adopt alloy casting steel, it has high rigidity and reliable performance.

Specification

	ZP175	ZP205	ZP275	ZP375
Dia. of Opening in (mm)	17.5（444.5）	20.5（520.7）	27.5（698.5）	37.5（952.5）
Distance Between Rotary Center and the Teeth Center of Inner Sprocket in (mm)	44（1118）	53.25（1353）
Max Static Hook Load Rating kN	1350	3150	4500	5850
Max Working Torque ft.lbs(N.m)	10132（13729）	16646（22555）	20265（27459）	23872（32365）
Max .Speed r/min	300
Gear Ratio	3.58	3.22	3.67	3.56
Overall Dimension in (mm) （L×W×H）	76.2×50.4×23 (1935×1280×585)	90×58×26.5 (2292×1475×673)	94×65.7×27 (2391×1670×685)	97×71×28 (2468×1810×718)
Weight lbs(kg)	3888（8572）	5530（12191）	6163（13590）	8026（17694）
