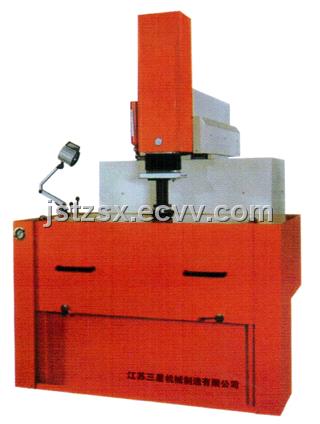

Die Sinking EDM/Electric Spark Machine

Inquiry Now

Place of Origin:	Jiangsu in China

Specifications

Model	DK7130/PNC	DK7140/PNC	DK7140/CNC	DK7150/CNC	DK7160/CNC	DK7170/CNC	DK7180/CNC	DK7190 (单/双)
Worktable size（mm）	600×300	700×400	700×400	800×450	1050×600	1250×800	1400×900	1700×1000
Table travel （mm）	300×200	450×350	450×350	500×400	700×550	1000×600	1300×700	1600×800 1100×2×800
Z Axis travel（mm）	180+180	200+200	300	300	400	450	500	500
Diatance from head of electrode to work table （mm）	120-480	210-610	250-550	370-720	500-900	550-1000	650-1150	650-1500
Max. electrode weight（kg）	50	70	70	100	200	200	200	300
Max. workpiece weight（kg）	250	800	1200	1800	3000	4000	5000	6000
lnterior Size of the Oil Groove（mm）	880×520 ×330	1120×620 ×400	1200×720 ×420	1230×760 ×500	1650×1100 ×600	2000×1300 ×650	2250×1300 ×650	2500×1500 ×650
Total weight （kg）	1050	2000	2800	2500	4500	5500	7000	9000/12000
Shape size(mm)	1300×1250 ×2000	1450×1200 ×2050	1450×1720 ×2280	1450×1720 ×2350	2200×2100 ×2500	2400×2340 ×2700	2800×3090 ×3360	3900×3800 ×3750
