Jiangsu Sanxing Machinery Manufacture Co., Ltd.| Manufacturer
Jiangsu Sanxing Machinery Manufacture Co., Ltd.

China Manufacturer with main products: Wire cut edm, Die sinking EDM, Hole drilling machine, CNC engraving machine, CNC milling machine, CNC machine Center, wire edm, wire cut

Home  >Products Catalog > CNC wire Cutting EDM > High Speed CNC EDM Wire Cutting Machine (DK7763AZ-3)

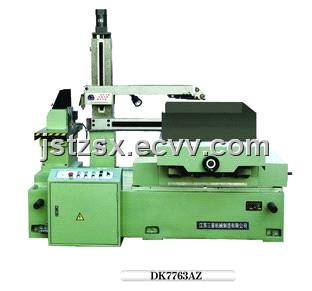

High Speed CNC EDM Wire Cutting Machine (DK7763AZ-3)

Payment Terms: L/C, T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangsu in China

Specifications

High Speed CNC EDM Wire Cutting Machine (DK7763AZ-3)

Type Dk7720 DK7725 DK7732 DK7740 DK7750 DK7763 DK7780 DK77100 DK77120
AZ AZ AZ AZ AZ AZ AZ AZ AZ
Worktable size(mm) 450× 318 520× 336 576× 366 720× 460 846× 555 1100× 720 1420× 910 1420× 1090 2500× 1400
Table travel(mm) 250× 200 320× 250 400× 320 500× 400 630× 500 800× 630 1200× 800 1200× 1000 1200× 1600
Max. Workpiece 200(200) 400(330) 400(330) 400(330) 500(400) 500(400) 450(350) 450(350) 500
thickness
(mm)
Total weight(kg) 900 1100 1300 1700 2500 4000 5000 5500 6000
Overall 1300× 900 1400× 1060 1520× 1140 1680× 1390 1870× 1590 2280× 1810 2500× 2500 2500× 2800 3180× 2700
dimensions × 1250 × 1500 × 1500 × 1540 × 1660 × 1780 × 1500 × 1500 × 2030
(mm)
Wire traveling 11.5
speed(m/s)
Wire diameter 0.13-0.18
(mm)
Max. Cutting 100
speed
(mm2/min)
Taper 6o /100
(° /mm)
Power input 3N-50Hz 380V(Monophase 50Hz 220v)
Total power ≤ 1.2

The company consistently pursures the princile of "Quality first, Customer Highest", regarding market as leader, putting customer's satisfaction as the No.1 priority.
