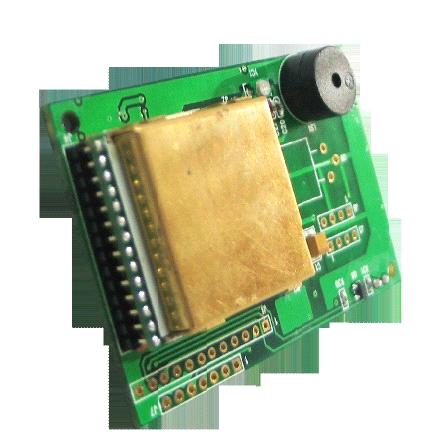

ACM120S-SM Contactless Small Module
| FOB Price: | 1.00 - 1000.00 USD/Piece |
|---|---|
| Supply Ability: | 500,000 Piece/Pieces per Year |
| Shipping: | 3-5days |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | Neutral packing |
Specifications
General
With its small size, the ACM120S Contactless Small Module can easily be installed in any standard-sized single-gang electrical switchbox without the hassle of drilling wall holes or reconstructing building circuitry. This entails a very simple and quick installation of a powerful contactless module that is ideal for a broad range of applications, especially physical access control and time and attendance.
With a mere wave of a contactless card, one can enable the ACM120S-SM to give off prompt read or write signals through its self-contained LED/buzzer, and at a blink of an eye, the relay is triggered to open the door for an authorized person attempting physical access.
Feartures
Compact size (70 mm x 45.3 mm)
Serial RS232 interface
Read and write functionality
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm
Supports major contactless smart cards conforming to ISO 14443 Type A in the market
Supports Mifare cards, including new Mifare Ultralight C and Mifare Plus SL1
Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
Selective card polling capability (especially useful when multiple cards are presented)
Easy-to-install for standard single-gang electrical switchbox
Operation LED
Buzzer
Relay
Applications
Time and attendance
Physical access control
Logical access control
Public transportation terminals
Vending machines
Automatic fare collection
Metering
Specification
|
Dimensions |
70 mm (L) x 45.3 mm (W) |
|
Interface |
RS-232 (Serial) |
|
Operating Distance |
<= 50 mm |
|
Supply Voltage |
Regulated 5V DC |
|
Supply Current |
Approx. 40 mA for standby mode; approx. 200 mA for mode with contactless function on |
|
Operating Temperature |
0-50°C |
|
Operating Frequency |
13.56 MHz |
|
CLK Frequency |
3.58 MHz |
|
Compliance/Certifications |
RoHS Compliant |
|
Operating System Support |
Windows 98, ME, NT, 2000, Server 2003, XP, Vista, Server 2008, Server 2008 R2, 7
Linux |
