Auto Diagnostic Tools (GM Tech2)

Specifications

The Tech-2 is the same tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all GM systems 1992 thru 2008

Features:

Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
Support for on-board diagnostics on all GM systems 1992 thru current year.
Removable hardware modules provide insurance against scan tool obsolescence.
Large, easy-to-read backlit screen.
RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
Ability to view the status of vehicle diagnostic tests as they run.
Bi-directional
The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

Vetronix Tech-2 Specifications

Dimensions           12

Microprocessor      32 bit, 16 MHz

Memory                 32 MB flash type II PCMCIA. Type III slot available for
                              future expansion.

Communications     Integral RS232 communication port.

Screen                     3. 8 backlit monochrome with full graphics
                                capability: 32 0 pixels. Displays up to 9 vehicle
                                parameters at once


Download Tech-2 Brochure ( 5.2 Mb )

Download Tech-2 Users Guide ( 6.8 Mb )

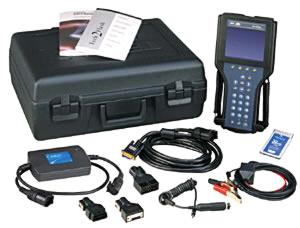

 GM Tech-2 Starter Kit with Candi Module & TIS Kit includes (All ORIGINAL and NEW!):

Tech-2 Flash Tester
32 MB PCMCIA Card with GM OE Applications
CAN diagnostic interface module(CANdi) and instruction sheet download ( 199.2 kb )
GM aftermarket Expertec TIS software on DVD-ROM disks
TIS2000 dongle to access SPS/Security features
Data/Sensor/Trouble Code Manual
DLC Cable, DLC Loopback Adapter
12V Cigarette Lighter Power Cable
SAE 16/19 Adapter
NAO 12/19 Adapter
Battery Power Cable
Storage Case
Tech-2 Users Manual download ( 3.9 Mb )
An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flash抯 diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications, even those vehicles using other platforms such as OBD I and OBD II.
