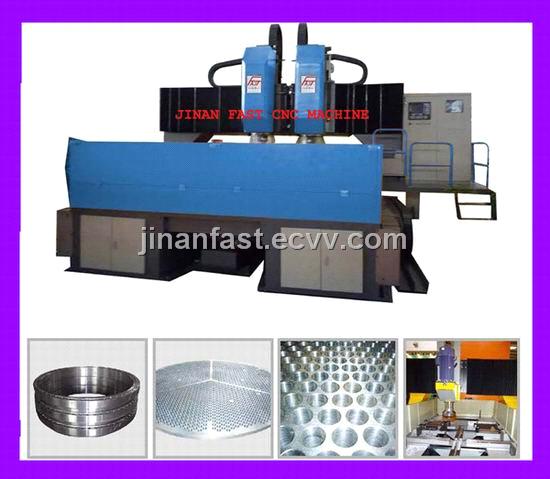

High Speed CNC Tube Sheet Drilling Machine

FOB Price:	10.00 - 100.00 USD/Set
Supply Ability:	1,000 Set/Sets per Year
Shipping:	60 days
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Shandong in China
Packaging Details:	International standard

Specifications

High speed CNC Tube Sheet Drilling Machine

Technical specifications:

Model
PZG5000
Max workpiece dimension
Max drill center to center distance(mm)
5000x5000

Max plate thickness(mm)
250

Work bench
T-slot width/distance(mm)
280/550

Drilling power head
Quantity
2

Main axes taper hole
BT50

Max drilling diameter(mm)
40(hard metal drills)

50(high-speed steel auger bit)

Main axes roating speed
(stepless frequency conversion timing)r/min
30-2000

Main axes motor power(kw)
2×22

The distance between the lower part of the axes and the work bench(mm)
280-780

Longitudinal movement(X axes)
Max stroke(mm)
5000

X axes movement speed(m/min)
0-8

X axes spindle drive power(kw)
2×3

Lateral movement(Y axes)
Max distance between the two main axes(mm)
5000

Y axes movement speed(m/min)
0-8

Y axes spindle drive power(kw)
2×3

Vertical ram feed-in movement(Z axes)
Max stroke of Z axes
500

Z axes feed-in speed(mm)
0-4

Z axes spindle drive power(kw)
2×3

Positioning accuracy
XY axes(mm)
≤0.1overall length

Repeat positioning accuracy
XY axes(mm)
≤0.05

Hydraulic system
Pressure of hydraulic pump/flux(L/min)
7/25

Hydraulic pump motor power(kw)
3

Clip removal and cooling
Form of clip cleaner
Flat chain

Number of clip cleaner
2

Speed of clip removal(m/min)
1

Clip removal motor power(kw)
2×0.75

Cooling pump motor power )kw)
2×3+0.75

Outline dimension
L×W×H(m)
About 9.6×8.1×3.6

Machine weight(t)
About 55

Welcome your inquiry to us at any time!! No wait, please order now！Thanks and regards, Susan Export Manager
