Razor Wire

FOB Price:	6.35 - 12.40 USD/Meter
Supply Ability:	10,000,000,000 Meter per Month
Shipping:	10
Payment Terms:	T/T(Bank Transfer)

In Stock

Inquiry Now

Related products from verified members

Barbed Wire

Price:

Min. Order:10 Ton

Product Details

Place of Origin:	Hebei in China

Specifications

Material: High Carbon Steel/Stainless Steel Wire
Hot Dip Gal. Iron Blade/Stainless Steel Blade

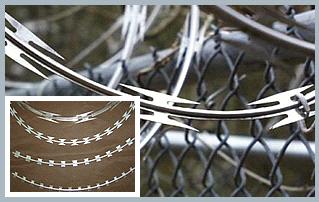

Features: Razor Wire is also named Tape Wire, Razor Tape Wire, Barbed Tape or Barbed Tape Wire. It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.
Application: Razor Wire is widely used by in military field, prisons, detention houses, government buildings and other national security facilities; it is also used as fence for cottage and society fence, and other private buildings.
razor wire Type (Barbed Tape Concertina (CBT); Barbed Tape Obstacle (BTO)

Reference Number< xml:namespace prefix = o />	Blade Style	Thickness (mm)	Wire Dia (mm)	Tape Length (mm)	Tape Width (mm)	Tape Spacing (mm)
BTO-10	< xml:namespace prefix = v />	0.50.05	2.50.1	101	131	261
BTO-12		0.50.05	2.50.1	121	151	261
BTO-18		0.50.05	2.50.1	181	151	331
BTO-22		0.50.05	2.50.1	221	151	341
BTO-28		0.50.05	2.5	28	15	451
BTO-30		0.50.05	2.5	30	18	451
CBT-60		0.60.05	2.50.1	602	321	1002
CBT-65		0.60.05	2.50.1	652	211	1002

razor wire Specification

Outside Dia (mm)	No of Loops	Standard Length per Coil	Type	Notes
450mm	33	7-8M	CBT-60,65	Single coil
500mm	56	12-13M	CBT-60,65	Single coil
700mm	56	13-14M	CBT-60,65	Single coil
960mm	56	14-15M	CBT-60,65	Single coil
450mm	56	8-9M(3 CLIPS)	BTO-10,12,18,22,28,30	Cross type
500mm	56	9-10M(3 CLIPS)	BTO-10,12,18,22,28,30	Cross type
600mm	56	10-11M(3 CLIPS)	BTO-10,12,18,22,28,30	Cross type
600mm	56	8-10M(5 CLIPS)	BTO-10,12,18,22,28,30	Cross type
700mm	56	10-12M(5 CLIPS)	BTO-10,12,18,22,28,30	Cross type
800mm	56	11-13M(5 CLIPS)	BTO-10,12,18,22,28,30	Cross type
900mm	56	12-14M(5 CLIPS)	BTO-10,12,18,22,28,30	Cross type
960mm	56	13-15M(5 CLIPS)	BTO-10,12,18,22,28,30	Cross type
980mm	56	14-16M(5 CLIPS)	BTO-10,12,18,22,28,30	Cross type

Special Features of Barbed Tape

1. The barb rips and the hook grabs, unlike the prick of standard barbed wire.

2. There are 3 - 4 times more points per meter than barbed wire.

3. The coil wire is hardened steel of 780kg breaking strain and thus cannot be cut with standard tools. This spring steel also ensures that the coil holds its shape.

4. Yirong lends itself to installation along an existing border fence/wall where at low cost the security of that barrier can be greatly improved.

5. Yirong provides for a wide variety of installation configurations, any of which may be selected to meet the degree of security required, according to the need of that particular site.

6. The wire provides a light barrier and is thus easy to ship, transport and deploy.

7. Yirong follows ground contours and can be rapidly installed without posts or straining wire, ie pyramid formation.

8. Tests revealed that certain military track armoured vehicles were stopped by BTC when the hardened steel entangled the tracks
