Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th

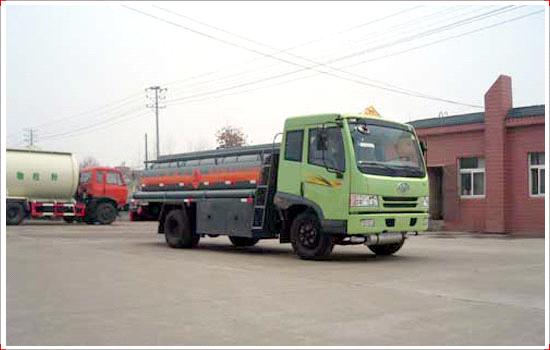

FAW Jiefang 4*2 Chemical Liquid Transport Truck (18CBM)
| FOB Price: | 30,000.00 - 60,000.00 USD/Set |
|---|---|
| Supply Ability: | 400 Set/Sets per Month |
| Shipping: | Mob:0086-15071634966 |
| Payment Terms: | L/C, T/T |
| Export Markets: | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | nuded,waxed |
Specifications
| Product Name | FAW Jiefang 4*2 chemical liquid transport truck | Overall dimension | 8200×2450×2700,2900(mm) |
| Chassis Model | CA1167PK2EA80 | Cargo body Dimension | ××(mm) |
| total mass | 15900(Kg) | Approach/Departure angle | 17/10(°) |
| Rated mass | 7990(Kg) | front/rear suspension | 1232/2368(mm) |
| curb mass | 7715(Kg) | Max speed | 88(km/h) |
| Engine | Engine manufacturer | displacement(ml) | power(kw) |
|
CA6DF3-16E3 CA6DE3-16E3 CA6DF3-16E3U CA6DE3-16E3F CA6DF3-16E3F |
FAW WUXI diesel branch
FAW
|
6740 6618 6744 6618 7120 |
125 124 125 121 121 |
| Emission standard | Euro Ⅲ | ||
| Axle No. | 2 | front tread | 1800/1800,1740(mm) |
| wheelbase | 4520,4600mm | rear tread | 1800,1740(mm) |
| Tyre No. | 6 | tyre size | 9.00-20,9.00R20,8.25-20,8.25R20 |
| fuel type | Diesel | Spring(pcs) | 7/10+3 |
| axle load | 5900/10000 | cab passenger | 3 |
| Note |
Transport medium : neopentane or other liquid
Density:0.62 ton/cubic meter
tank capacity:13.5cubic meter;(max18 CBM)
Tank dimension (length/long axle/short axle) (mm):5500/2300/1600
|
||
| Special function |
Chemical liquid tank truck consists of chassis ,tank body and chemical pump.It can be independent or seperated for different chemicals and liquid substance.The tank body have many plastic washboards ,which are tested by high pressure.And the tank is of high-strength, stable gravity and steady carrying.
Tank material : stainless steel , carbon steel,manganese steel,aluminum ,plastic etc.
Tank shape: oval,square round and round.
|
||
| Contact with us for more information , and we will serve you best! | |||
