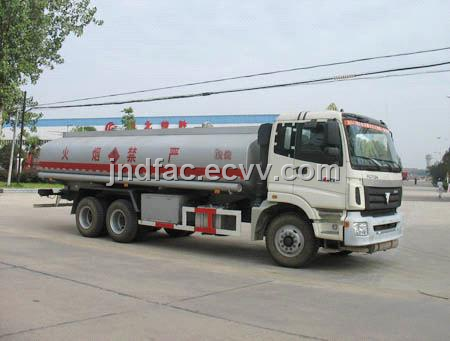

Foton Auman 6*4 Chemical Liquid Tank Truck ( 25CBM )
| FOB Price: | 30000.00 - 120000.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set/Sets per Month |
| Shipping: | 25 workdays |
| Payment Terms: | L/C, T/T(Bank Transfer) |
| Place of Origin: | Hubei in China |
|---|---|
| Packaging Details: | waxing,according to buyer's need |
Specifications
| Technical specification | |||
| Producat Name | AUMAN double rear axle chemical liquid tank truck | Overall dimension | 10260×2480×3350(mm) |
| Chassis Model | BJ5257GNFJH-S1 | Cargo body Dimension | ××(mm) |
| total mass | 25000(Kg) | Approach/Departure angle | 11/12(°) |
| Rated mass | 13500(Kg) | front/rear suspension | 1532/2703(mm) |
| curb mass | 11305(Kg) | Max speed | 90(km/h) |
| Engine | Engine manufacturer | Displacement (ml) | Power(kw) |
|
SC8DK240Q3 SC9DK270Q3B1 |
SHANGHAI diesel engine Co., ltd |
8270 8820 |
177 199 |
| Emission standard | Euro Ⅲ | ||
| Axle No. | 3 | front tread | 1930/1860/1860(mm) |
| Wheelbase | 4725+1300 mm | rear tread | 1860/1860(mm) |
| Tyre No. | 10 | tyre size | 10. 00-20, 10. 00R20 |
| fuel type | Diesel | Spring(pcs) | 9/12 |
| axle load | 7000/18000(double axles) | Spring(pcs) | 3 |
| Note |
Transport medium : cyclohexane
Density: 0. 68 ton/cubic meter
max tank capacity: 25 cubic meter;
Tank dimension (length/long axle/short axle) (mm): 7500/2460/1600
|
||
| Special function |
Features: Chemical liquid tank truck consists of chassis , tank body and chemical pump. It can be independent or seperated for different chemicals and liquid substance. The tank body have many plastic washboards , which have been tested by high pressure. And the tank is of high-strength, stable gravity and steady carrying.
Tank material : stainless steel , carbon steel, manganese steel, aluminum , plastic etc.
Tank shape: oval, square round and round.
Chemical pump: we adopt the good pump of domestic famous brands. |
||
