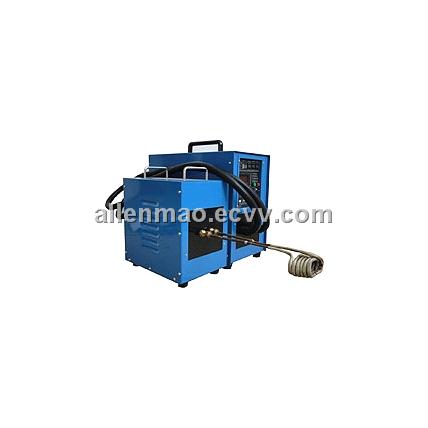

IGBT High Frequency Induction Heating Generator

Supply Ability:	100 Set/Sets per Month
Shipping:	5 days
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	WOODEN CASES

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE CCC
Condition: New

Specifications

1. With high frequency up to 200KHZ, the quenching thickness can be controlled lower than 1～ 1.5mm.
2. IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
3 .100% Duty cycle, continuous working is allowed at maximum power output.
4. Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
5 .Display of heating power and heating current and oscillating frequency;
6 .Simple to install, Installation can be done by unprofessional person very easily;
7. Light weight
8 .Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
9 .The separated models are designed to fit the dirty surrounding of some cases.

Type	CDH-40AB
Work power	3×380V(415V,440V,480V) 50-60HZ
The range of operating voltage	340V-430V(370-480)V AC
Output power	40 KW
Fluctuating frequency	30-80KHZ
Output current	400-1800A
Timing (Heat time, Retain time , Cool time)	1-99S
The flow rate of cooling water	0.2Mpa, 7L/Min
Water temperature protection point	40℃
Weight	Mainparts:36Kg extension:37kg
Size	Main parts: 600250540mm Extension: 500255420mm
