EM250 Series 100mW ZigBee Module (stamp)

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Place of Origin:	Zhejiang in China

Specifications

1. Introduction

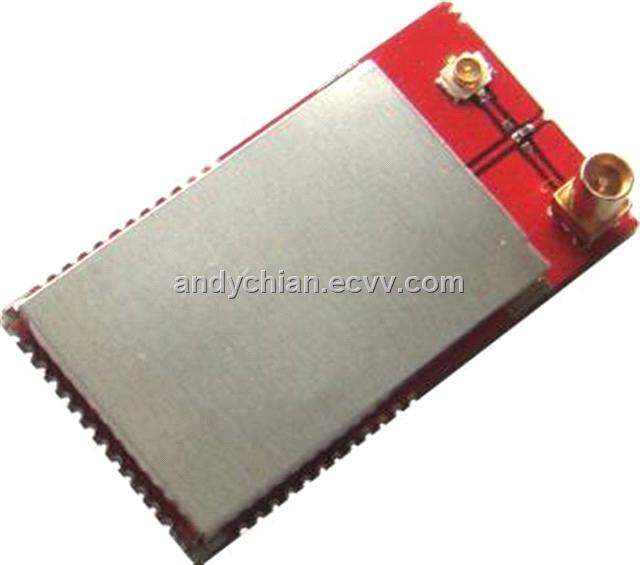

SilverPAC 100mW EM250 ZigBee module (HZ2323) is a type of surface mounted module that enable users to implement ZigBee/IEEE 802.15.4 compliant solution which satisfies the needs of low-cost, low-power wireless sensor networks. The module is easy-to-use, save board space and provide reliable delivery of data between devices.

SilverPAC 100mW EM250 ZigBee module (HZ2323) operates within the ISM 2.4GHz frequency band. The module's default configuration supports a wide range of data system applications. The module uses Ember's EM250 wireless microcontroller to provide a comprehensive solution.

2. Product Features

State-of-art EM250 chip adopted

Stable and reliable Ember protocol stack embedded

Easy to implement ZigBee technology integration for hardware equipment manufacturers

Wide communication range and high network reliability

3. Specifications

Table 3-01: Specifications of 100mW ZigBee Module (HZ2323)

Typical Transmit Range	400~1400m (line of sight)
Typical Transmit Power Output	9~18dBm
RF Data Rate	250kbps
Serial Interface Data Rate (software selectable)	1200-115200 bps
Receiver Sensitivity (1% packet error rate)	-102dBm
Supply Voltage	3.3V
Operating Current (Transmit)	80~120mA
Operating Current (Receive)	42.5mA
Power-down Current	0.82μA
Operating Frequency Band	ISM 2.4GHz
Operating Temperature	-40 to 85℃
Antenna Interface	MMCX jack (connected to the MMCX plug of antenna cable); Silvered antenna; uFl connector.
Interface Features	17 GPIO ports; 4 interrupt ports; 2 serial ports UART/SPI/I2C supported; 4*12 bits A/D ports
Supported Network Topologies	Point-to-point, Point-to-multipoint, Peer-to-peer Mesh
Number of Channels (software selectable)	16 Direct Sequence Channels
Dimension	38213.5 (mm)
