Sinotech Machinery Co. Limited
China Manufacturer with main products: dry mortar production line, roll forming machine, sandwich panel production line, sand making production line, EPS block production line,... |

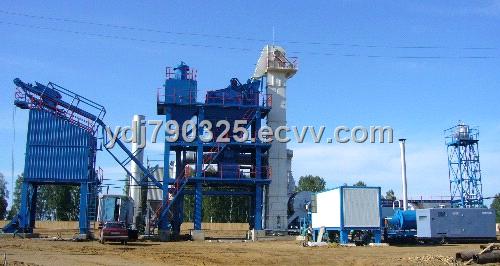

Batch Asphalt Concrete Plant
| FOB Price: | 200000.00 - 500000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Year |
| Shipping: | 90 days |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Shanghai in China |
|---|---|
| Packaging Details: | seaworthy packing |
Specifications
Asphalt mixing plant
The asphalt mixing plant is the innovation product based on international advanced technology. Our products are widely used for advanced maintenance. The asphalt mixing plant series with a productivity of 40-400 tons/hours, being highly automatic intensity, accurate measuring and high dependability is an ideal choice in advanced road construction and maintenance. Its key components such as burning devices and sensors are all named brand products.
The Forced Batch Asphalt Mixing Plants with a productivity of 40-400 tons/hour, high automatic accurate measuring and high reliability. It is an ideal choice for advanced road construction and maintenance. Its key components such as burning system reducer motors and sensors are all famous brand products. The control system, adopting the programmable controller and professional engineering computer of Siemens make the weight, mixing, discharging automatic, semi-automatic and manual ways. The mixing blades are made of wear-resistant cast iron, having long performance life. Aggregates powder and bitumen are measured alone so as to ensure batching precision and reliability. Hot aggregate and power elevating use double-stranded lifting machine with auto-tension system.
|
Model |
Rated capacity (t/h) |
Power (kw) |
Measure Accuracy(Static)% |
Way of dust collection |
Dust Concentration (mg/Nm3) |
Warehouse Style | ||
|
Asphalt |
Powder |
Aggregate |
||||||
|
ST500 |
40 |
143 |
± 0.25 |
± 0.5 |
± 0.5 |
Cyclone dust catcher |
≤ 400/≤ 100 |
aside |
|
ST800 |
64 |
185 |
± 0.25 |
± 0.5 |
± 0.5 |
Water type/sack type |
≤ 400/≤ 100 |
aside/on bottom |
|
ST1000 |
80 |
205 |
± 0.20 |
± 0.25 |
± 0.5 |
≤ 400/≤ 100 | ||
|
ST1200 |
96 |
215 |
± 0.25 |
± 0.25 |
± 0.5 |
≤ 400/≤ 100 | ||
|
ST1500 |
120 |
368 |
± 0.25 |
± 0.5 |
± 0.5 |
≤ 400/≤ 100 | ||
|
ST2000 |
160 |
520 |
± 0.25 |
± 0.5 |
± 0.5 |
≤ 400/≤ 100 | ||
|
ST3000 |
240 |
760 |
± 0.20 |
± 0.25 |
± 0.5 |
≤ 50 | ||
|
ST4000 |
320 |
1052 |
± 0.20 |
± 0.20 |
± 0.3 |
Sack type |
≤ 25 | |
|
ST5000 |
400 |
1037 |
± 0.10 |
± 0.20 |
± 0.3 |
≤ 25 |
aside | |
The capacity will fluctuate 10% because of environment and material parameters.
Work condition:
Aggregate moisture content: ≤5%
Max. Diameter of aggregate: 40mm
dust concentration: ≤250mg/Nm3
Aggregate shape: the shape should be normal, can't be multi-pore or absorbent
Environment temperature: +5℃~+55℃
Altitude: ≤1000m
Cold aggregate average density: >1650kg/m3
Fuel thermal value: ≥46055kJ/kg
Residual moisture content of mixture: ≤0.3%
Environment protection standard:
Exhaust dust concentration: <100mg/Nm3
Black density of smoke: Ringle-Imann 1 grade
Environment noise: ≤80dB(30m from the source of noise source)
Noise in the control room: ≤70dB
