Powerline Network Adapter (85M)

FOB Price:	40.00 - 45.00 USD/Pair
Supply Ability:	1,000 Pair per Week
Shipping:	3-5days
Payment Terms:	T/T(Bank Transfer), Western Union, PayPal

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Optic Adapter

Price:0.50-10.00 USD/Piece

Min. Order:10 Pieces
RF Coaxial Adaptors

Price:

Min. Order:

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	10pairs/ctn

Specifications

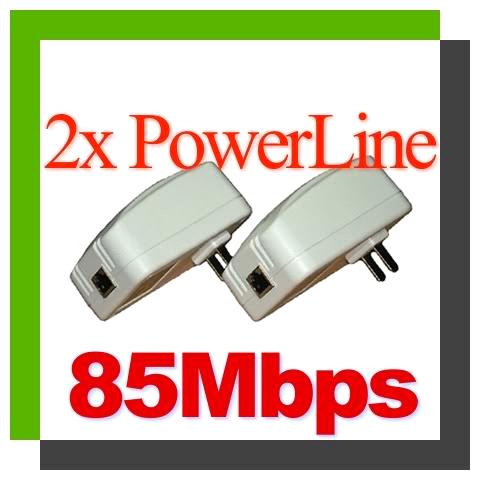

85Mbps Power line Ethernet Bridge

Model No: PLC-85M

85Mbps Power line Ethernet Bridge is ideal for residence and SOHO network.

The data transfer rate meets and exceeds cable/DSL Internet services.

Plug the Ethernet Bridge into any AC outlet and create your own local area network.

Share, send, and stream any file, audio, and video.

The 85Mbps Ethernet Bridge provides stable, superior connection with effective distance up to 100 meters.

Overcome wireless signal barriers, save cost on network installation, and enjoy the freedom to rearrange your workstations.

The Ethernet Bridge is also perfect for gamers who look for the low ping and the small edge.

Some practical applications:

Home/Office Networking

Video Game consoles (Play Station, XBOX)

Appliance with Internet features

IP Camera

Audio/Video distribution to speakers, IPTVs

DVD quality video streaming

Features:

Home Plug 1.0.1 Compatible

Up to 85 Mbps data rate on the Power line

Effective Data Rate Up to 25 Mbps Throughput

10/100 Fast Ethernet Interface Connection

Plug and Play

56 bit Data Encryption Security

Supports QAM 256/64/16, DQPSK, DBPSK and ROBO modulation

Integrated Quality of Service (Quos)

Compatible with Windows, Linux, & MAC OS

Specification :

Items Description

Device Dimensions 95mm x 65mm x 80 mm (L x W x H)

Device Weight 155 g

Line Rate 85 Mbps

Effect Data Rate Up to 25Mbps effective throughput

Frequency Band 4.3~20.9 MHz

Access Methods CSMA/CA

Quos 4 Levels

Modulation OFDM (QAM 256/64/16, DBPSK, DQPSK)

Port One 10/100 Ethernet RJ45 port

Standards IEEE 802.3, IEEE 802.3U, Home Plug 1.0.1

Operating System Windows 98, SE, Me, NT, 2000, XP, MAC OS, Linux

Nodes Supports up to 15 nodes per network

Encryption 56 bit DES Link Encryption with key management

Environment Temperature Operating: 0-40C

Storage: -20-60C

Relative Humidity Operating: 10-85% Non-condensing

Storage: 5-90% Non-Condensing

Power Source 100 ~ 240 VACS, 50/60 Hz

Power Consumption less than 5W

Certification UL, CE, Home Plug 1.0.1

LEDs and Status Indication:

LINK/ACT On: Ethernet device linked

Off: No Ethernet device linked

Blinking: Ethernet traffic detected

LINK On: Power line adapter detected

Off: No Power line adapter detected

ACT Blinking: Power line traffic detected

Off: No power line traffic detected

COL Blinking: Power line collision detected

Off: No Power line collision detected
